Product Model

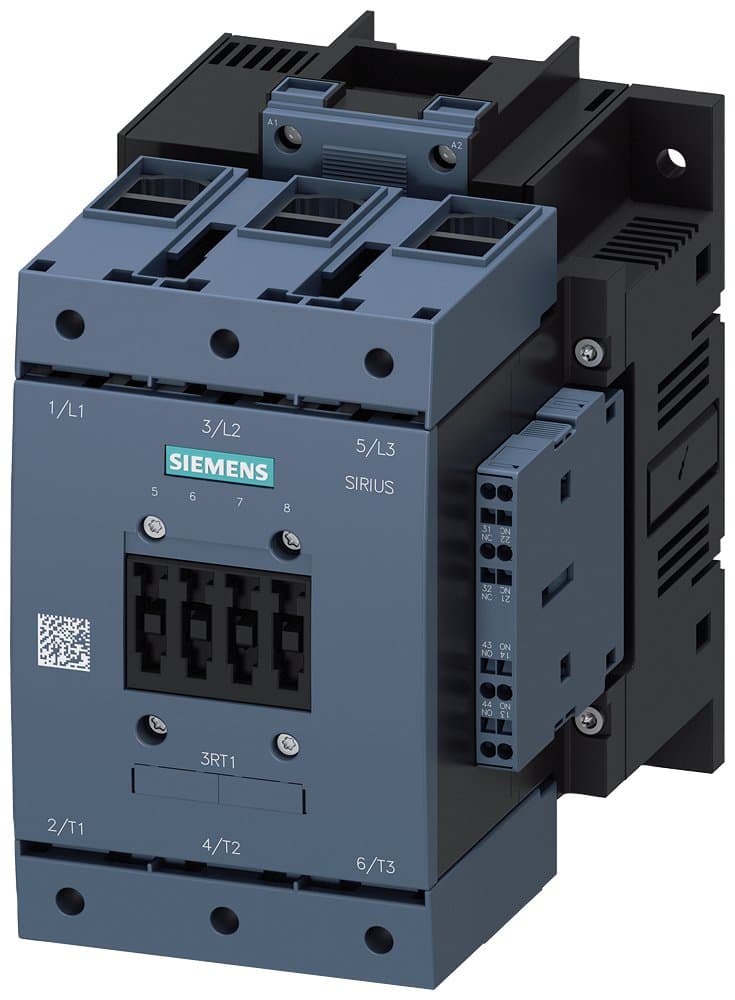

3RT1054-1AP38-0PA5
Key Features
- 1High power rating: 55 kW/400V AC-3.
- 2Reliable operation: Designed for continuous use in industrial settings.
- 3Versatile connectivity: 3-pole, auxiliary contacts 2 NO + 2 NC.
- 4Wide voltage compatibility: AC (50-60 Hz) and DC Uc: 220-240 V.
- 5Compliance with regulations: Meets REACH Regulation requirements for safe use and disposal.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Main Contact Configuration | 3NO | Wiring Method | Box Terminal |
| Auxiliary Contacts | 2NO2NC | Coil Frequency | AC/DC |
| Coil Power Supply | AC/DC | Number of Poles | 3P |
| Rated Current AC-3 | 115A | Specification | S6 |
| Product Type | Contactor | Lifecycle | Delivery Release (PM300) |
| Country of Origin | Germany | ECCN | N |
| AL | N | Model | 3RT1054-1AP38-0PA5 |
Specifications may be subject to change without notice
