Product Model

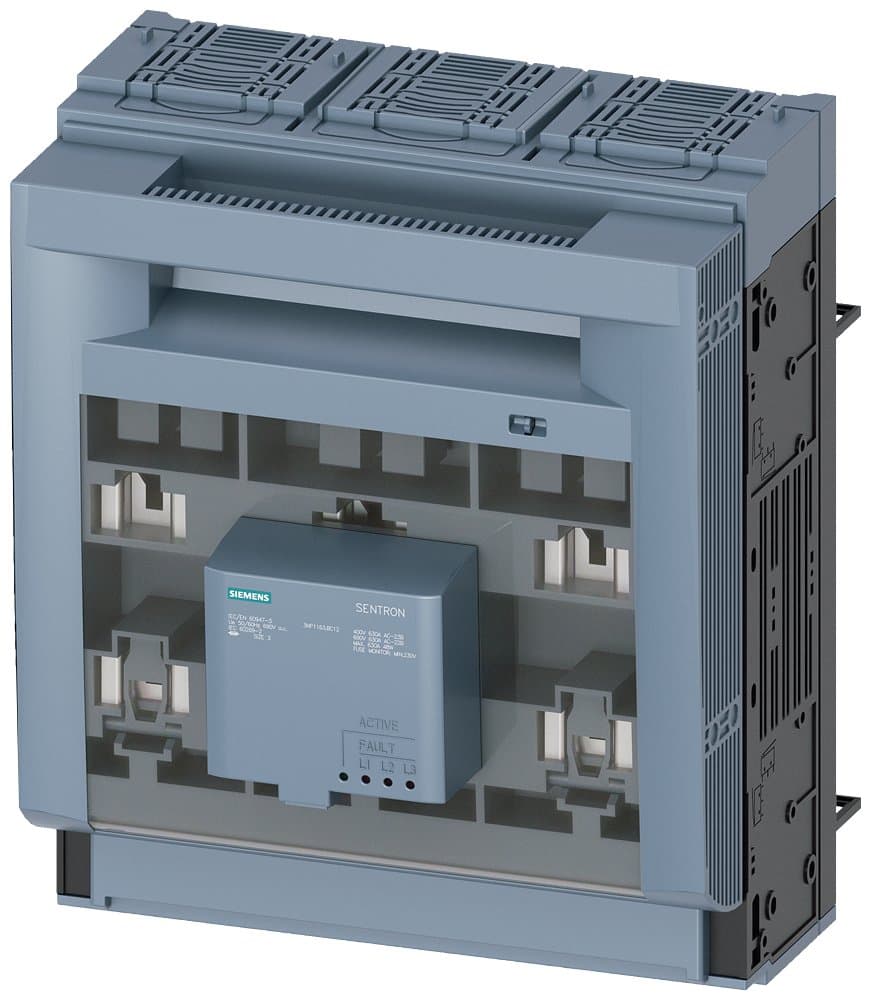

3NP1163-1BC12
Key Features
- 1High Current Rating: 630 A for reliable power distribution.
- 2Electronic Fuse Monitoring: EFM10 ensures real-time monitoring and protection.
- 3Compact Design: Suitable for busbar systems with flat terminal connections.
- 4Robust Protection: Prevents electric shock and short circuits with advanced switching functions.
- 5Versatile Mounting Options: Floor mounting and 40/60 mm busbar system compatibility.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| DC Insulation Voltage(V) | 440 | AC Rated Voltage(V) | 690 |
| Insulation Voltage(V) | 1000 | Number of Poles | 3P |
| Description | 3NP1, rated current 630A, Size 2/3, 60mm busbar system, flat connection, 3P, electronic EFM10 fuse monitoring, 32/70mm cover with contact protection, suitable for busbar and Rittal systems without base | Others | 32/70mm cover with contact protection, suitable for busbar and Rittal systems without base |
| Fuse Monitoring | Electronic EFM10 Fuse Monitoring | Installation Type | 60mm Busbar System |
| Fuse Specification | Size: 2/3 | Terminal Type | Flat Connection |
| Rated Current In(A) | 630 | Specification | 3NP116【630】 |
| Lifecycle | Delivery Release (PM300) | Country of Origin | Germany |
| ECCN | 9N9999 | AL | N |
| Model Number | 3NP1163-1BC12 |
Specifications may be subject to change without notice
