Product Model

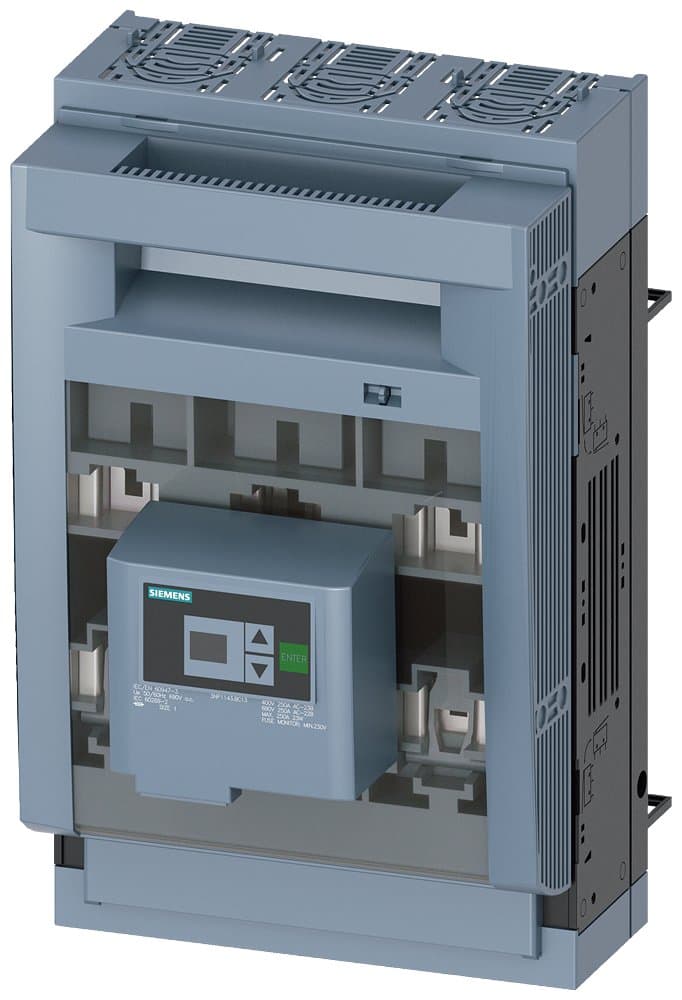

3NP1143-1BC13
Key Features
- 1High current capacity up to 250 A.
- 2Electronic fuse monitoring for enhanced safety.
- 3Robust design for busbar systems with 60 mm spacing.
- 4Compact terminal design for efficient installation.
- 5IP65 protection rating for durability in harsh environments.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| DC Insulation Voltage(V) | 440 | AC Rated Voltage(V) | 690 |
| Insulation Voltage(V) | 1000 | Number of Poles | 3P |
| Description | 3NP1, rated current 250A, Size 0/1, 60mm busbar system, flat connection, 3P, electronic EFM20 fuse monitoring, 32/70mm cover with contact protection, suitable for busbar and Rittal systems without base | Others | 32/70mm cover with contact protection, suitable for busbar and Rittal systems without base |
| Fuse Monitoring | Electronic EFM20 Fuse Monitoring | Installation Type | 60mm Busbar System |
| Fuse Specification | Size: 0/1 | Terminal Type | Flat Connection |
| Rated Current In(A) | 250 | Specification | 3NP114【250A】 |
| Lifecycle | Delivery Release (PM300) | Country of Origin | Germany |
| ECCN | 9N9999 | AL | N |
| Model Number | 3NP1143-1BC13 |
Specifications may be subject to change without notice
