Product Model

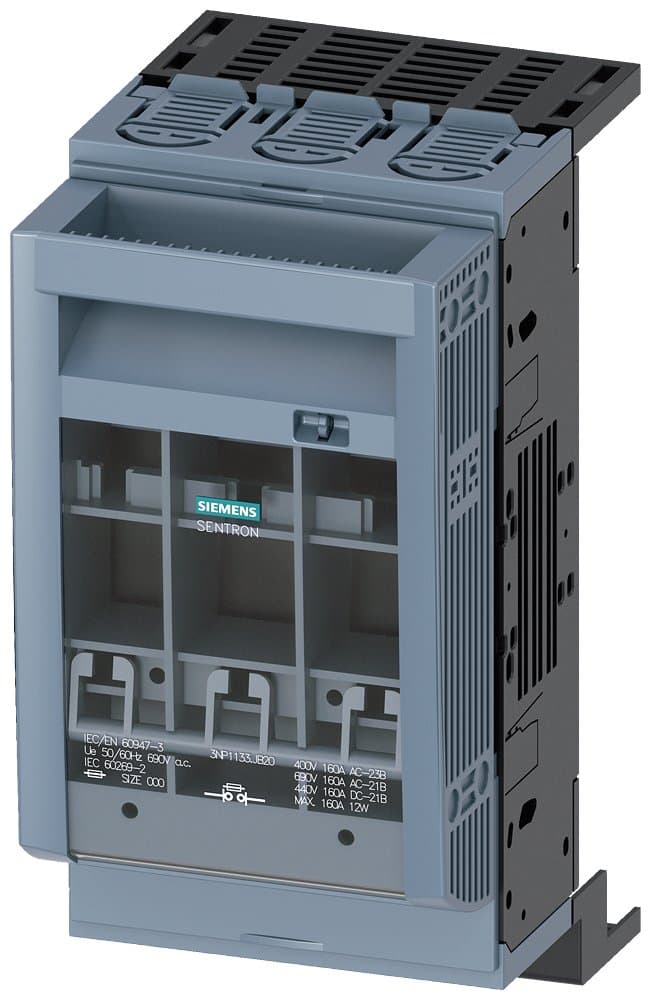

3NP1133-1JB20
Key Features
- 1High current capacity of 160 A.
- 2Designed for Rittal busbar systems with a 40 mm width.
- 33-pole configuration for versatile applications.
- 4NH00 type fuse switch disconnector for enhanced safety.
- 5Compact design with cover level 32/70 mm for easy integration.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| DC Insulation Voltage(V): | 440 | AC Rated Voltage(V): | 690 |
| Insulation Voltage(V): | 1000 | Number of Poles: | 3P |
| Description | 3NP1, rated current 160A, Size 00/000, 40mm busbar system, box terminal, 3P, suitable for Rittal systems with base | Others: | Suitable for Rittal systems with base |
| Installation Type: | 40mm busbar system | Fuse Rating: | Size: 00/000 |
| Terminal Type: | Box Terminal | Rated Current In(A): | 160 |
| Specifications: | 3NP11【160A】 | Lifecycle | Delivery Release (PM300) |
| Country of Origin | Germany | ECCN | 9N9999 |
| AL | N | Model Number | 3NP1133-1JB20 |
Specifications may be subject to change without notice
