Product Model

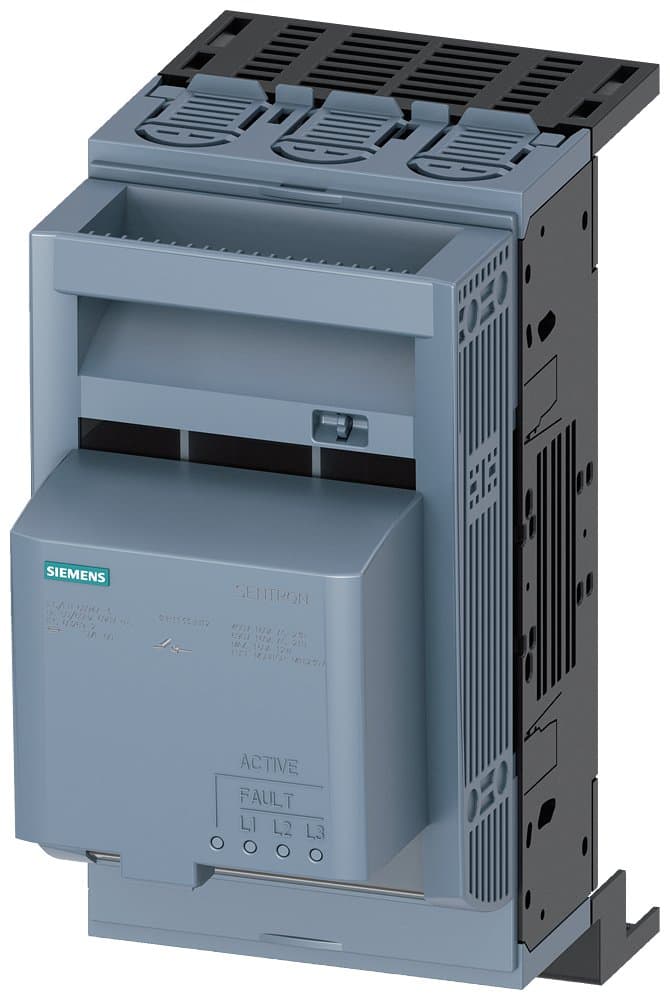

3NP1133-1JB12
Key Features
- 1Protects users from electric shock with permanent switch-on and switch-off under load.
- 2Customizable to meet specific application needs through the Siemens configurator.
- 3Suitable for various mounting types, including floor mounting and standard rail mounting.
- 4Supports rated currents from 16 to 2000 A, making it versatile for different electrical installations.
- 5Meets IEC 60947-3 and UL 508 standards for reliability and safety.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| DC Insulation Voltage(V) | 440 | AC Rated Voltage(V) | 690 |
| Insulation Voltage(V) | 1000 | Number of Poles | 3P |
| Description | 3NP1, Rated current 160A, Size 00/000, 40mm Busbar System, Flat Connection, 3P, Electronic EFM10 Fuse Monitoring, Suitable for Rittal systems with base | Other | Suitable for Rittal systems with base |
| Fuse Monitoring | Electronic EFM10 Fuse Monitoring | Installation Type | 40mm Busbar System |
| Fuse Rating | Size: 00/000 | Terminal Type | Flat Connection |
| Rated Current In(A) | 160 | Specifications | 3NP11【160A】 |
| Lifecycle | Delivery Release (PM300) | Country of Origin | Germany |
| ECCN | EAR99 | AL | N |
| Model Number | 3NP1133-1JB12 |
Specifications may be subject to change without notice
