Product Model

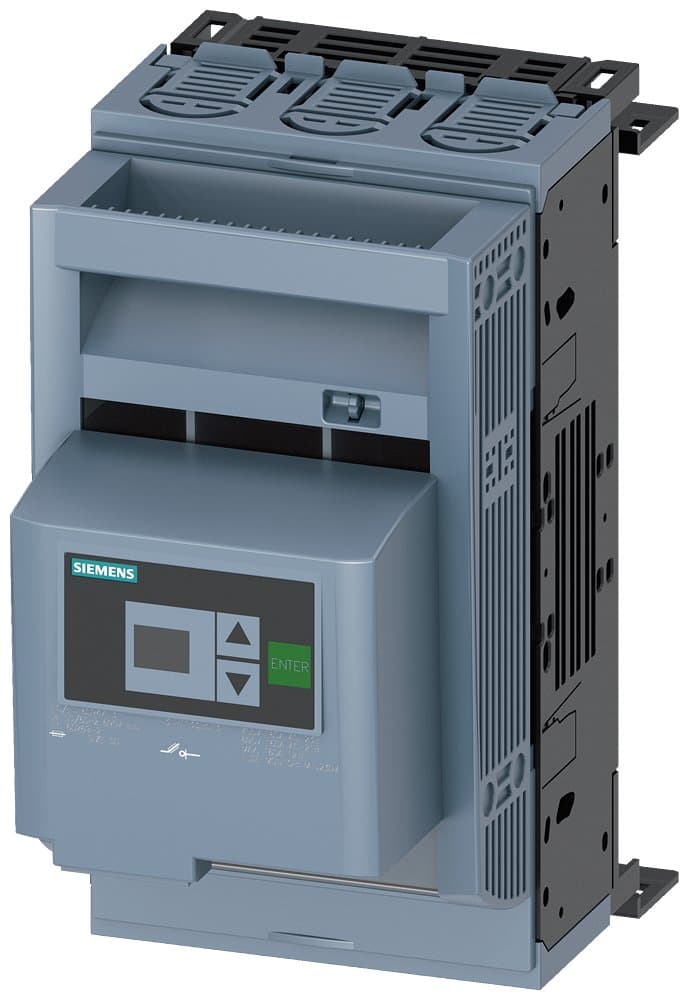

3NP1133-1BC13
Key Features
- 1Protects users from electric shock with permanent switch-on and switch-off under load.
- 2Handles 160 A, suitable for various industrial applications.
- 3Features electronic fuse monitoring (EFM20) for enhanced reliability.
- 4Compatible with busbar system 8US 60 mm, featuring flat terminals.
- 5Meets DIN VDE 0100-200 standards for functional switching devices.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| DC Insulation Voltage (V) | 440 | AC Rated Voltage (V) | 690 |
| Insulation Voltage (V) | 1000 | Number of Poles | 3P |
| Description | 3NP1, rated current 160A, Size 00/000, 60mm busbar system, flat connection, 3P, electronic EFM20 fuse monitoring, 32/70mm cover with contact protection, suitable for busbar and Rittal systems without base | Other | 32/70mm cover with contact protection, suitable for busbar and Rittal systems without base |
| Fuse Monitoring | Electronic EFM20 Fuse Monitoring | Installation Type | 60mm Busbar System |
| Fuse Specification | Size: 00/000 | Terminal Type | Flat Connection |
| Rated Current In(A) | 160 | Specification | 3NP11【160A】 |
| Lifecycle | Delivery Release (PM300) | Country of Origin | Germany |
| ECCN | 9N9999 | AL | N |
| Model Number | 3NP1133-1BC13 |
Specifications may be subject to change without notice
