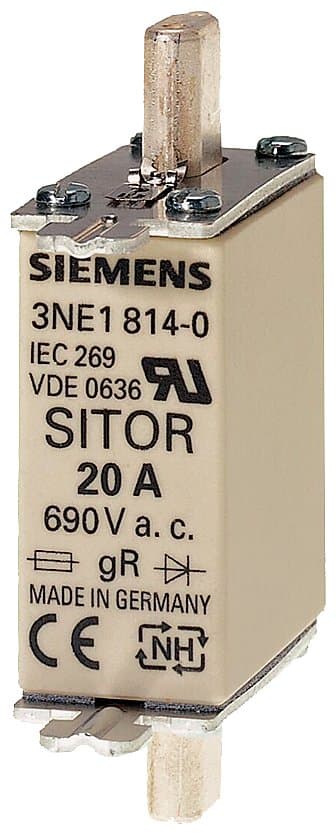

Product Model
3NE1814-0
Key Features
- 1High Current Rating: 20A current rating for robust electrical protection.
- 2Wide Voltage Range: Compatible with up to 690V AC and 250V DC.
- 3Front Indicator: Visual front indicator for easy monitoring of fuse status.
- 4Durable Design: Constructed with durable blade contacts for reliable operation.
- 5Compliance with Standards: Meets gS and DIN 43620 standards for safety and performance.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Description | SITOR Fuse Size 000 gS 20A 690VAC | Rated Voltage: | 690VAC |
| Type: | gS [Cable and Semiconductor Full-Range Protection (Overload & Short Circuit Protection)] | Rated Current In(A): | 20 |
| Specifications: | Size: 000 [16-80A] | Lifecycle | Delivery Release (PM300) |
| Country of Origin | Germany | ECCN | N |
| AL | N | Model | 3NE1814-0 |
Specifications may be subject to change without notice
