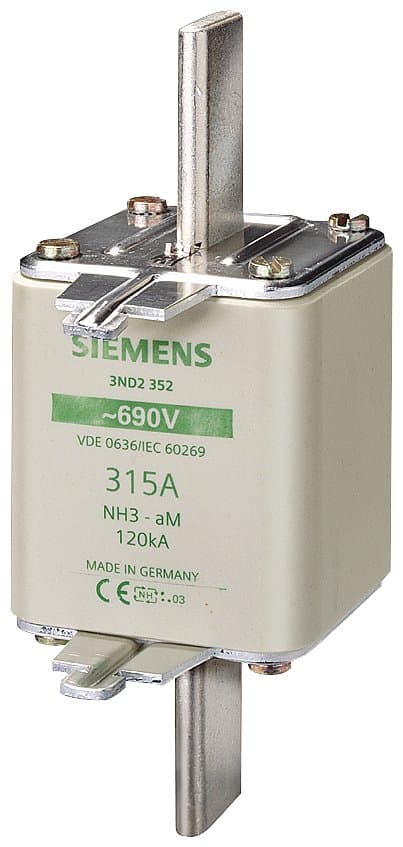

Product Model
3ND2352
Key Features
- 1High-rated current protection up to 315 A.
- 2Compact design with front indicator and live grip lugs.
- 3Reliable switching capacity of 120 kA.
- 4Suitable for motor circuits and distribution technology.
- 5Non-interchangeable design ensures safety compliance.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Description | NH Fuse Size 3 aM 315A 690VAC | Rated Voltage | 690VAC |
| Type | aM【Motor partial range protection (short circuit protection)】 | Rated Current In(A) | 315 |
| Specifications | Size: 3 【315-630A】 | Lifecycle | Delivery Release (PM300) |
| Country of Origin | Germany | ECCN | N |
| AL | N | Model | 3ND2352 |
Specifications may be subject to change without notice
