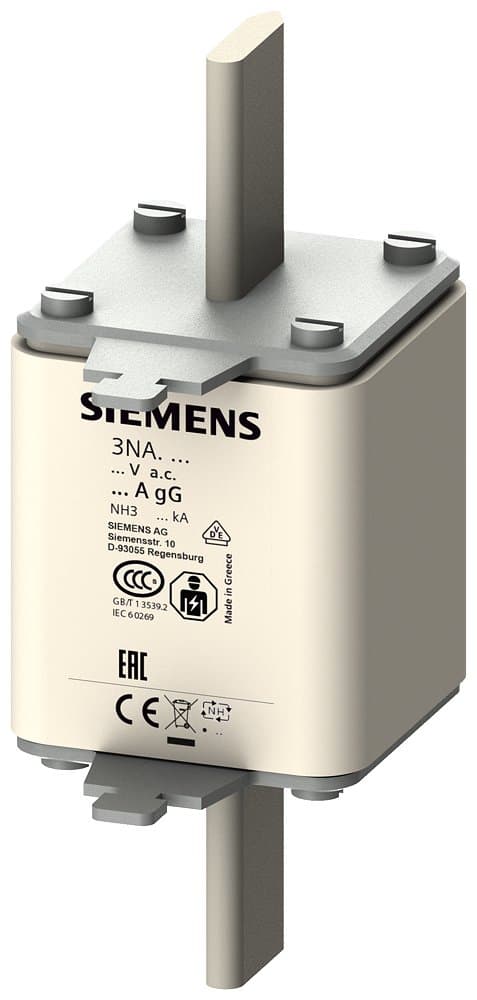

Product Model
3NA3342
Key Features
- 1High current capacity: 224 A
- 2Dual voltage compatibility: 500 V AC, 440 V DC
- 3Front indicator for live status monitoring
- 4Encapsulated housing for outdoor use (IP65)
- 5Suitable for DC applications and industrial settings
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Description | NH Fuse Size 3 gG/gL 224A 500VAC/400VDC | Rated Voltage | 500VAC/440VDC |
| Type | gG/gL [Full Range Protection for Cables and Wires (Overload & Short Circuit Protection)] | Rated Current In(A) | 224 |
| Specifications | Size: 3 [200-630A] | Lifecycle | Delivery Release (PM300) |
| Country of Origin | Germany | ECCN | N |
| AL | N | Model | 3NA3342 |
Specifications may be subject to change without notice
