Product Model
3LD2830-0TK13
Key Features
- 1High Current Rating: 125A Iu rating for reliable operation.
- 2Emergency Switching: Designed for emergency shutdowns in distribution installations.
- 3Three-Pole Configuration: Suitable for various electrical configurations and applications.
- 4High Operating Power: 45 kW at AC-23 A 400 V for efficient operation.
- 5Durable Design: Built for long-lasting performance in demanding environments.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| AC Rated Voltage(V): | 690 | Insulation Voltage(V): | 690 |

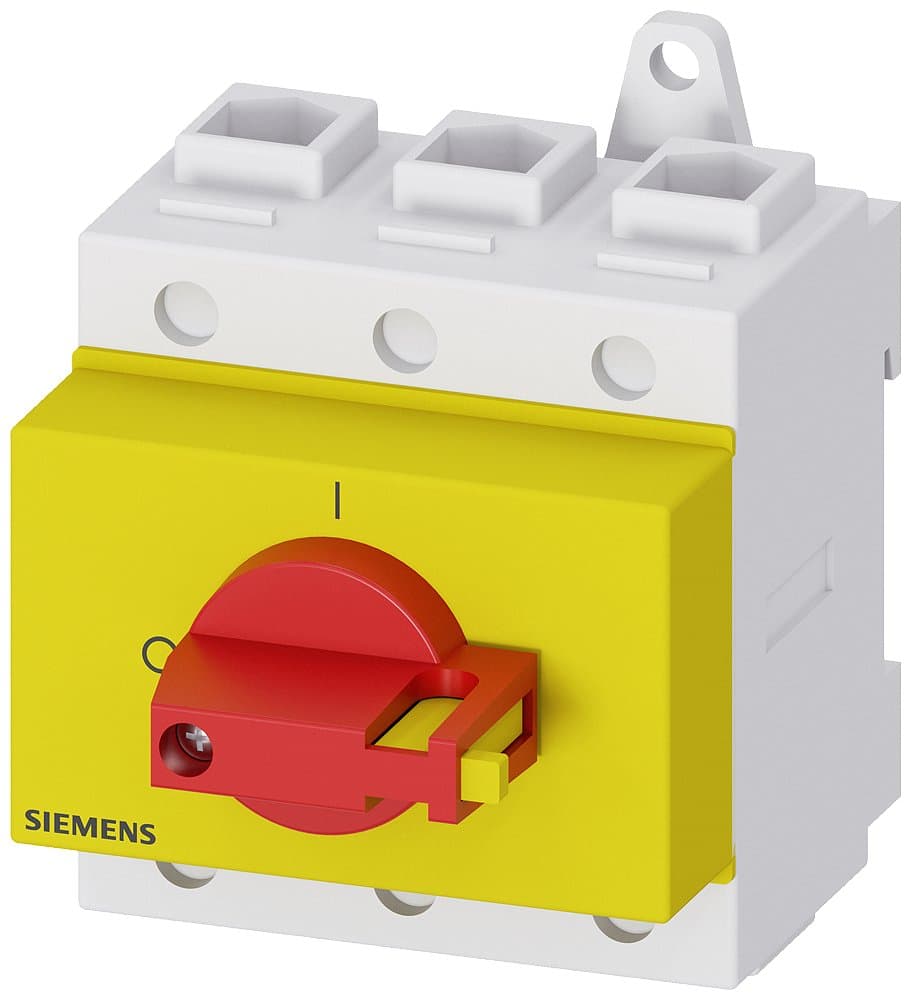

| Description | Isolator switch, main control and emergency stop switch, 3LD2, 125A, 3P, with shield plate and selector switch, red/yellow handle, distribution panel mounting, AC-23A/45KW | Mounting Type: | Distribution Panel Mounting |
| Other: | AC-23A/45KW | Poles: | 3P |
| In(A): | 125 | Specification: | 3LD28【125A】 |
| Switch Type: | With Shield Plate and Selector Switch, Red/Yellow Handle | Lifecycle | Delivery Release (PM300) |
| Country of Origin | Germany | ECCN | N |
| AL | N | Model Number | 3LD2830-0TK13 |
Specifications may be subject to change without notice
