Product Model

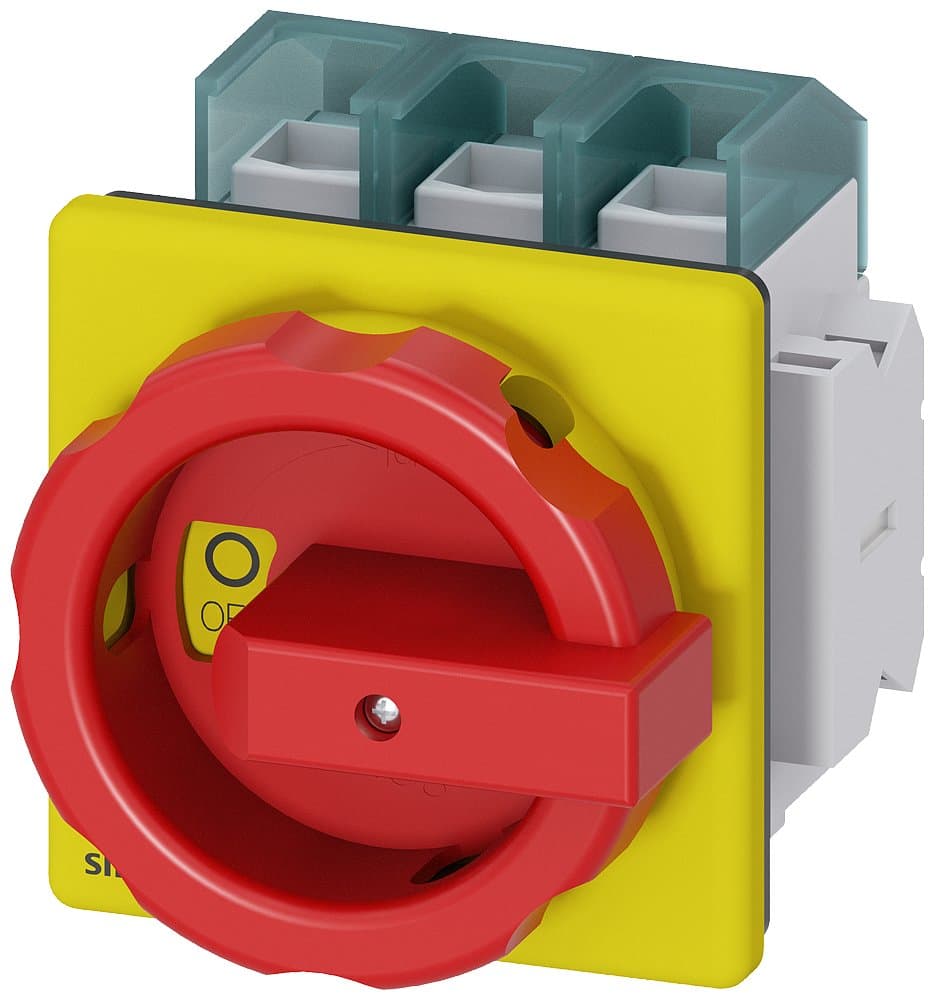

3LD2804-1TP53
Key Features
- 1High-quality circuit protection for industrial applications
- 2Reliable main switch disconnector with robust design
- 3Efficient operation in demanding environments
- 4Compatible with various industrial control systems
- 5Free delivery available on select platforms
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| AC Rated Voltage (V) | 690 | Insulation Voltage (V) | 690 |
| Description | Isolator switch, main control and emergency stop switch, 3LD2, 125A, 3P, with rotary operating mechanism, red/yellow handle, flush mounting, four-hole fixation on cabinet door, AC-23A/45KW, 1NO+1NC | Installation Type | Flush mounting cabinet door with four-hole fixation |
| Other | AC-23A/45KW, 1NO+1NC | Poles | 3P |
| In(A) | 125 | Specification | 3LD28【125A】 |
| Switch Type | With rotary operating mechanism, red/yellow handle | Lifecycle | Delivery Release (PM300) |
| Country of Origin | Germany | ECCN | N |
| AL | N | Model Number | 3LD2804-1TP53 |
Specifications may be subject to change without notice
