Product Model

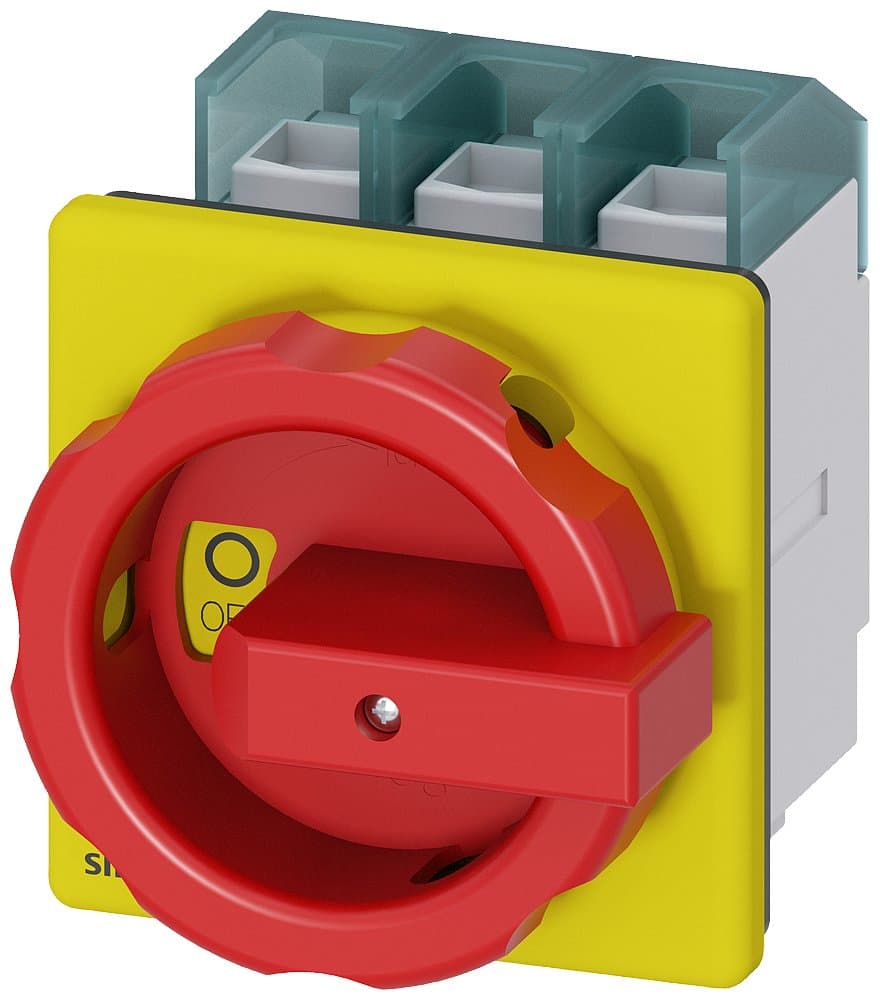

3LD2804-0TK53
Key Features
- 1High-Performance Switch Disconnector: The 3LD2804-0TK53 is designed for emergency switching-off in industrial settings.
- 23-Pole Configuration: Suitable for applications requiring three poles of operation.
- 3125A Current Rating: Handles up to 125A of current, ensuring reliable operation.
- 4690V Voltage Rating: Compatible with 690V AC systems, making it versatile for various industrial applications.
- 5Front-Mounted Design: Easy to install and maintain with its front-mounted design.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| AC Rated Voltage (V) | 690 | Insulation Voltage (V) | 690 |
| Description | Isolator switch, main control and emergency stop switch, 3LD2, 125A, 3P, with rotary operating mechanism, red/yellow handle, panel mounted, four-hole mounting on panel door, AC-3/37KW; AC-23A/45KW | Mounting Type | Panel door mounting with four-hole fixing |
| Other | AC-3/37KW; AC-23A/45KW | Poles | 3P |
| In(A) | 125 | Specification | 3LD28【125A】 |
| Switch Type | With rotary operating mechanism, red/yellow handle | Lifecycle | Delivery Release (PM300) |
| Country of Origin | Germany | ECCN | N |
| AL | N | Model Number | 3LD2804-0TK53 |
Specifications may be subject to change without notice
