Product Model

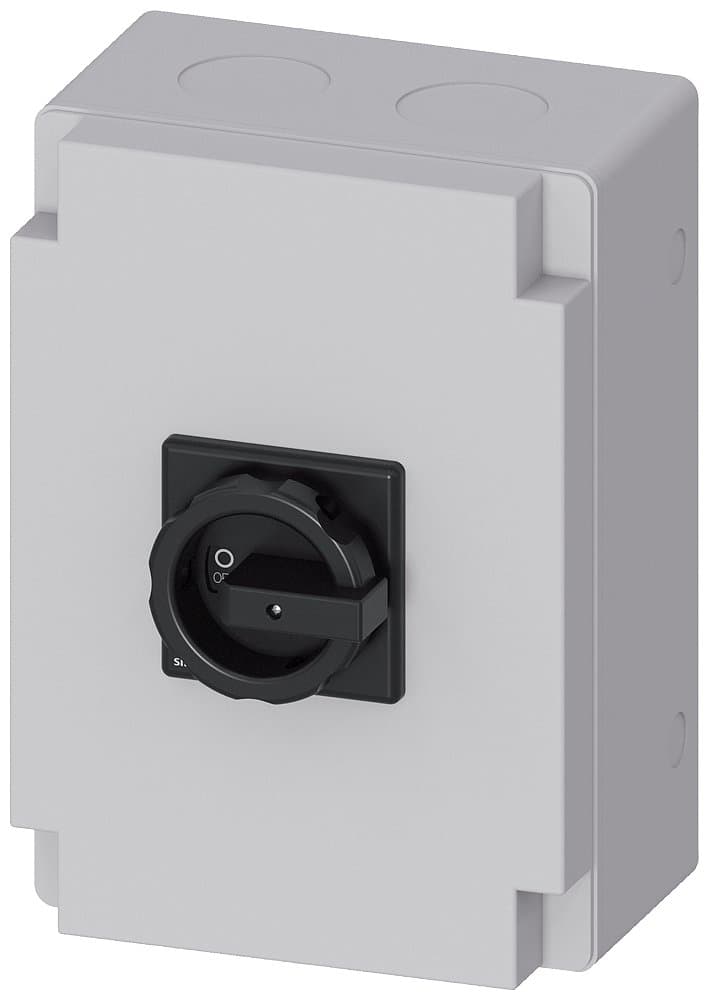

3LD2766-1GP51
Key Features
- 1High-Power Capability: Handles up to 37 kW of operating power.
- 2Robust Design: Features a molded-plastic encapsulation for metric screw connection.
- 3Reliable Operation: Includes a rotary operating mechanism with 1 NC and 1 NO contact.
- 4Versatile Application: Suitable for various industrial applications requiring a 3-pole main switch.
- 5Compliance and Safety: Meets RoHS and WEEE directives, ensuring environmental compliance.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| AC Rated Voltage (V) | 690 | Insulation Voltage (V) | 690 |
| Description | Isolator Switch, Main and Emergency Stop Switch, 3LD2, 100A, 3P, Metric Thread Sealed Connector, Black Handle, Plastic Housing Installation, AC-23A/37KW, 1NO+1NC | Mounting Type | Plastic Housing Installation |
| Terminal Type | N | Other | AC-23A/37KW, 1NO+1NC |
| Number of Poles | 3P | In(A) | 100 |
| Specification | 3LD27【100A】 | Switch Type | Metric Thread Sealed Connector, Black Handle |
| Lifecycle | Delivery Release (PM300) | Country of Origin | Germany |
| ECCN | N | AL | N |
| Model Number | 3LD2766-1GP51 |
Specifications may be subject to change without notice
