Product Model
3LD2418-0TK11
Key Features
- 1High Current Rating: 250A for reliable operation in demanding environments.
- 2Robust Construction: Floor mounting with door coupling for secure and stable installation.
- 3Operational Power: 132 kW at AC-23 A at 400 V for efficient power handling.
- 4IP65 Rating: Front IP65 protection ensures durability in harsh conditions.
- 5Versatile Mounting Options: Compatible with DIN rail mounting and panel mounting for flexibility.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| AC Rated Voltage (V) | 690 | Insulation Voltage (V) | 690 |

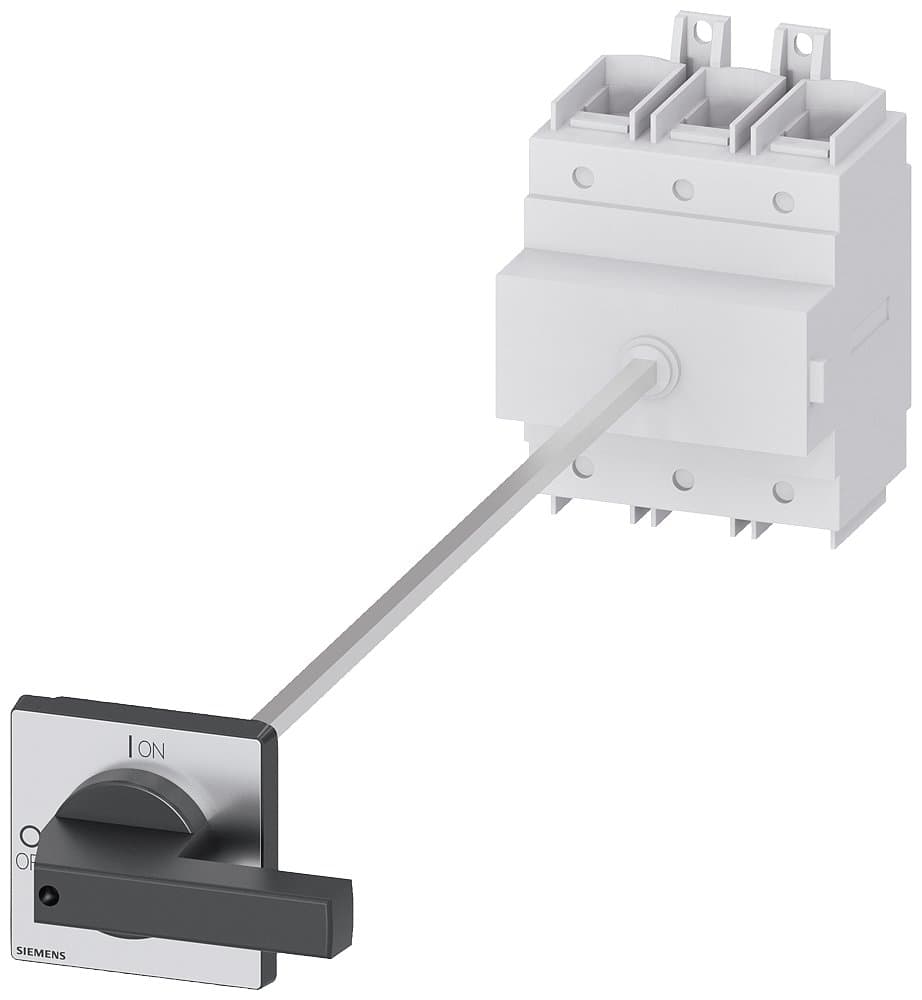

| Description | Isolator switch, main and emergency stop switch, 3LD2, 250A, 3P, with door-coupled rotary operation mechanism, black handle, base-mounted installation, four-hole mounting on cabinet door, AC-23A/132KW | Installation Type | Base-mounted installation, four-hole mounting on cabinet door |
| Other | AC-23A/132KW | Number of Poles | 3P |
| In(A) | 250 | Specification | 3LD24【250A】 |
| Switch Type | With door-coupled rotary operation mechanism, black handle | Lifecycle | Delivery Release (PM300) |
| Country of Origin | Germany | ECCN | N |
| AL | N | Model Number | 3LD2418-0TK11 |
Specifications may be subject to change without notice
