Product Model

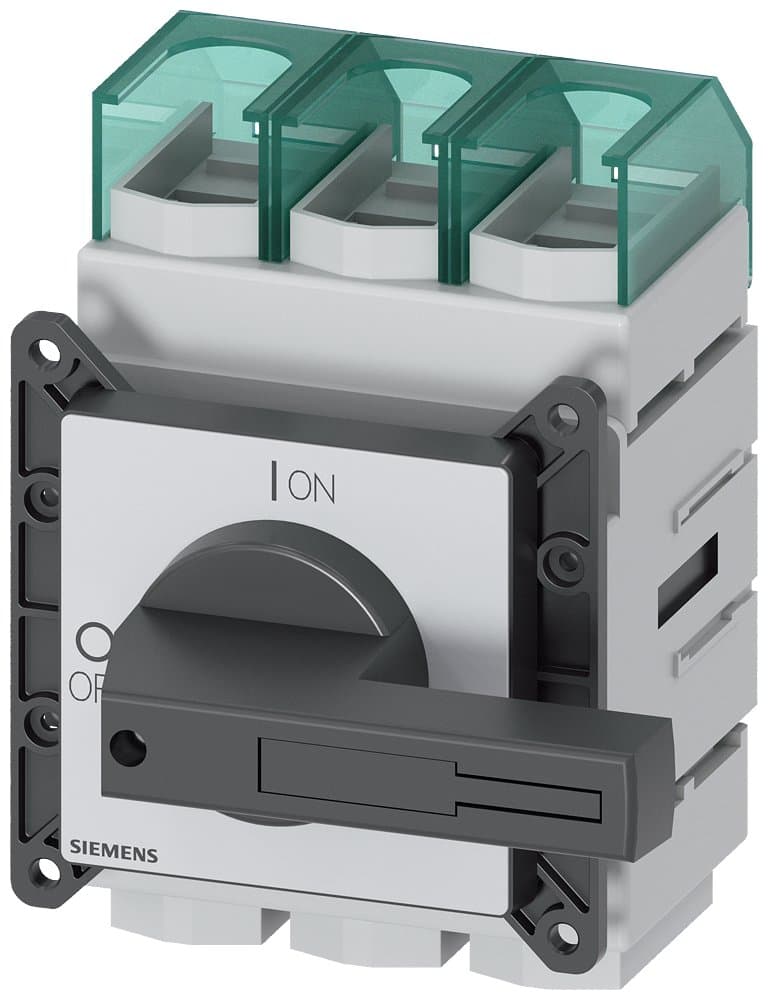

3LD2405-0TK11
Key Features
- 1Safe Power Distribution: Protects users from electric shock with permanent switch-on and switch-off under load.
- 2High Current Rating: Handles up to 250 A, suitable for various industrial applications.
- 3Front-Mounted Design: Conveniently mounted on the front of panels for easy access.
- 4Knob-Operated Mechanism: Simple and intuitive operation with a knob-operated mechanism.
- 5Comprehensive Safety Features: Meets IEC 60947-3 and UL 508 standards for maximum safety and reliability.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| AC Rated Voltage (V) | 690 | Insulation Voltage (V) | 690 |
| Description | Isolator switch, main and emergency stop switch, 3LD2, 250A, 3P, with rotating operation mechanism, black handle, flush mounting, four-hole installation on cabinet door, AC-3/110kW; AC-23A/132kW | Installation Type | Flush Mounting on Cabinet Door with Four Holes |
| Other | AC-3/110kW; AC-23A/132kW | Number of Poles | 3P |
| In(A) | 250 | Specification | 3LD24【250A】 |
| Switch Type | With Rotating Operation Mechanism, Black Handle | Lifecycle | Delivery Release (PM300) |
| Country of Origin | Germany | ECCN | N |
| AL | N | Model Number | 3LD2405-0TK11 |
Specifications may be subject to change without notice
