Product Model
3LD2318-3VK11
Key Features
- 1Reliable power control for industrial applications.
- 26-pole configuration for versatile use.
- 3160A current rating for high-capacity switching.
- 4Floor mounting with door coupling for easy installation.
- 5Meets stringent safety standards for secure operation.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| AC Rated Voltage (V) | 690 | Insulation Voltage (V) | 690 |

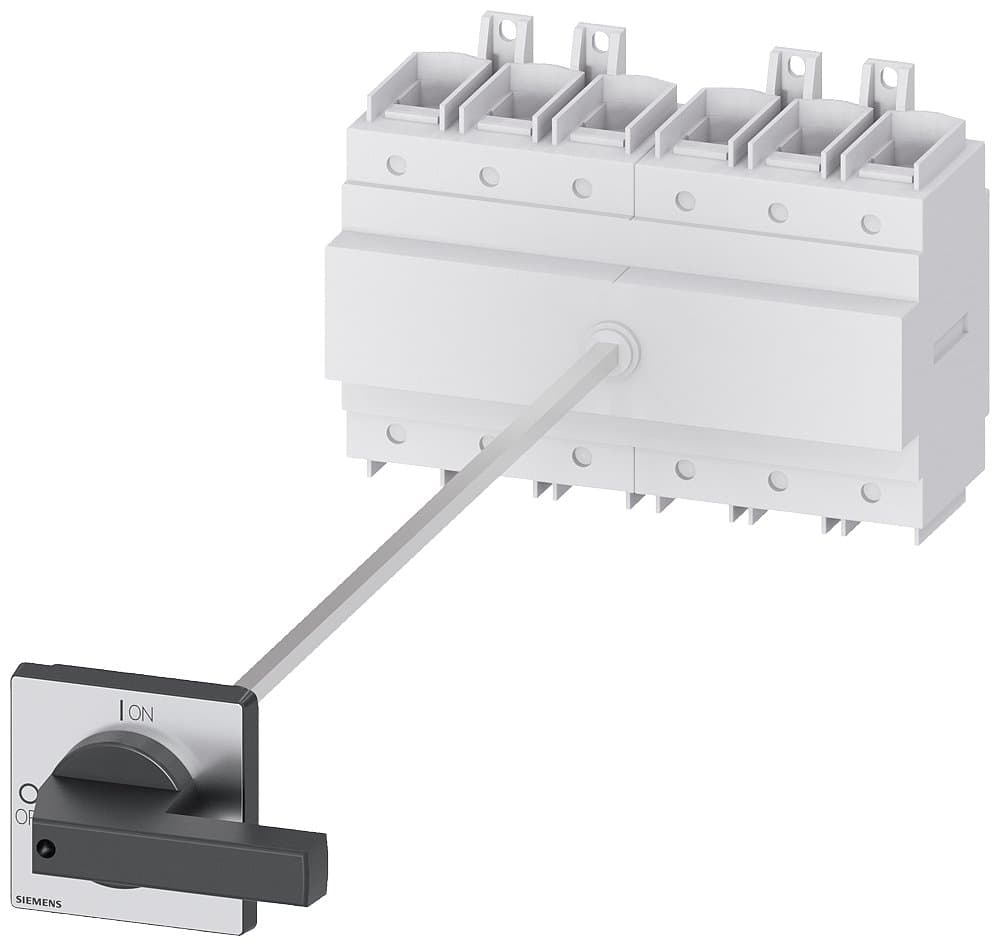

| Description | Isolator switch, main and emergency stop switch, 3LD2, 160A, 6P, with door-coupled rotary operation mechanism, black handle, base-mounted installation, cabinet door with four-hole fixation, AC-3/50KW; AC-23A/75KW | Installation Type | Base-mounted installation, cabinet door with four-hole fixation |
| Other | AC-3/50KW; AC-23A/75KW | Number of Poles | 6P |
| In(A) | 160 | Specification | 3LD23【160A】 |
| Switch Type | With door-coupled rotary operation mechanism, black handle | Lifecycle | Delivery Release (PM300) |
| Country of Origin | Germany | ECCN | N |
| AL | N | Model Number | 3LD2318-3VK11 |
Specifications may be subject to change without notice
