Product Model

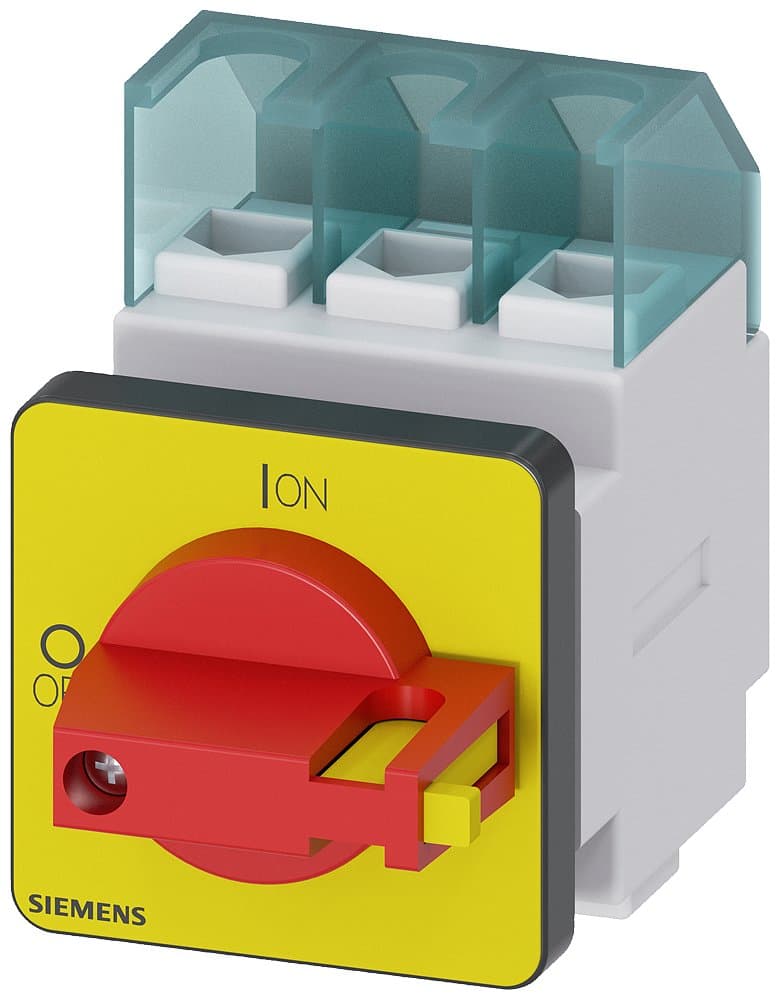

3LD2222-0TK13
Key Features
- 1High Performance at 690 VAC and 32 A
- 2Durable IP65 Enclosure for Harsh Environments
- 3User-Friendly Rotary Knob Actuator for Easy Operation
- 4Ideal for Electrical Applications Requiring Emergency Switching-Off
- 53-Pole Design for Reliable and Efficient Switching
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| AC Rated Voltage(V): | 690 | Insulation Voltage(V): | 690 |
| Description | Isolator switch, main control and emergency stop switch, 3LD2, 32A, 3P, with selector switch operation mechanism, red/yellow handle, flush mounting, cabinet door four-hole installation, AC-23A/11.5KW | Installation Type: | Flush Mounting Cabinet Door Four-Hole Installation |
| Others: | AC-23A/11.5KW | Poles: | 3P |
| In(A): | 32 | Specification: | 3LD22【32A】 |
| Switch Type: | With Selector Switch Operation Mechanism, Red/Yellow Handle | Lifecycle | Delivery Release (PM300) |
| Country of Origin | Germany | ECCN | N |
| AL | N | Model Number | 3LD2222-0TK13 |
Specifications may be subject to change without notice
