Product Model
3LD2217-1TL13
Key Features
- 1High-voltage switch rated for 690V and 32A.
- 2Reliable SENTRON technology from Siemens.
- 3Free delivery on orders.
- 430-day returns policy for customer satisfaction.
- 5In stock and ready to ship today.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| AC Rated Voltage(V): | 690 | Insulation Voltage(V): | 690 |

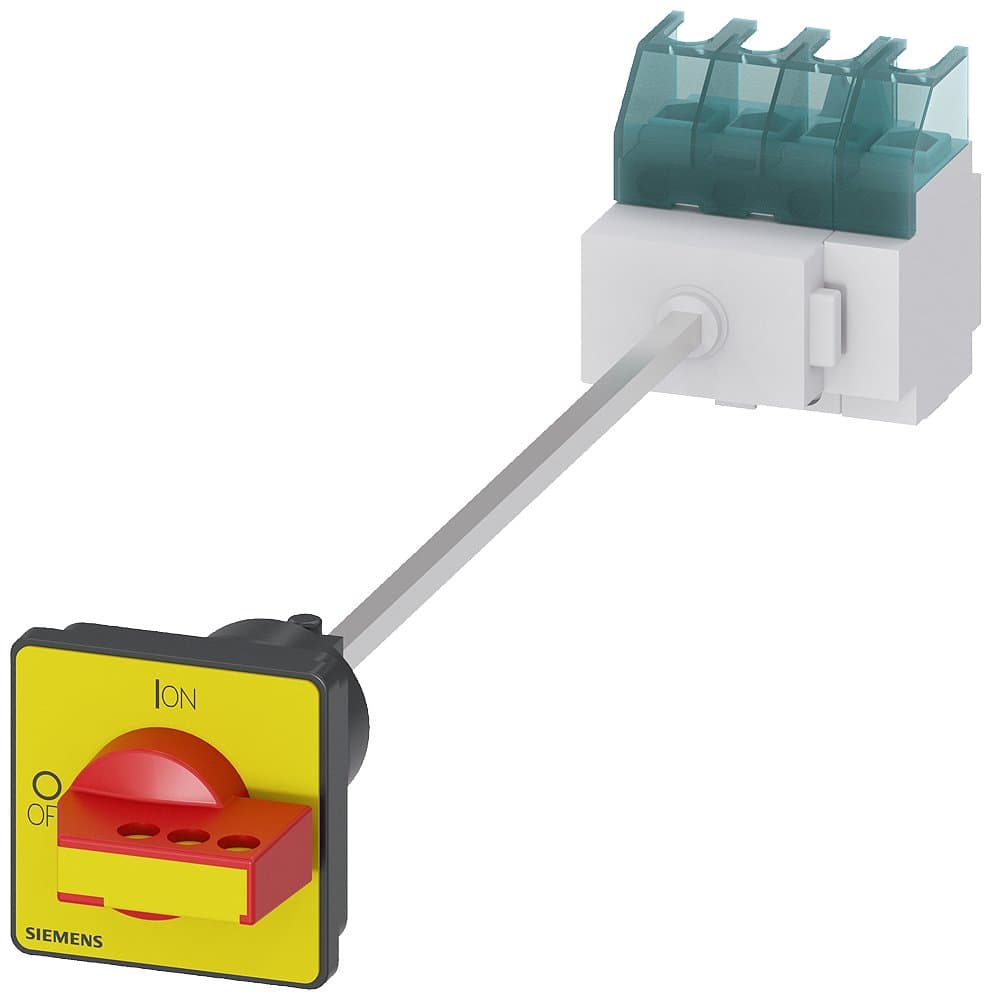

| Description | Isolator switch, main control and emergency stop switch, 3LD2, 32A, 3P+N, rotary operation mechanism with removable door coupling, red/yellow handle, base-mounted installation, cabinet door four-hole mounting, AC-23A/11.5KW, UL508 certified | Installation Type: | Base-mounted installation, cabinet door four-hole mounting |
| Other: | AC-23A/11.5KW, UL508 certified | Poles: | 3P+N |
| In(A): | 32 | Specification: | 3LD22【32A】 |
| Switch Type: | Rotary operation mechanism with removable door coupling, red/yellow handle | Lifecycle | Delivery Release (PM300) |
| Country of Origin | Germany | ECCN | N |
| AL | N | Model Number | 3LD2217-1TL13 |
Specifications may be subject to change without notice
