Product Model
3LD2144-0TK53
Key Features
- 13-Pole Design for Versatile Applications
- 225A Current Rating for Reliable Performance
- 39.5kW Operating Power at AC-23A 400V
- 4Floor Mounting with Door for Easy Access
- 5Red/Yellow Handle for Clear Indication
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| AC Rated Voltage(V): | 690 | Insulation Voltage(V): | 690 |

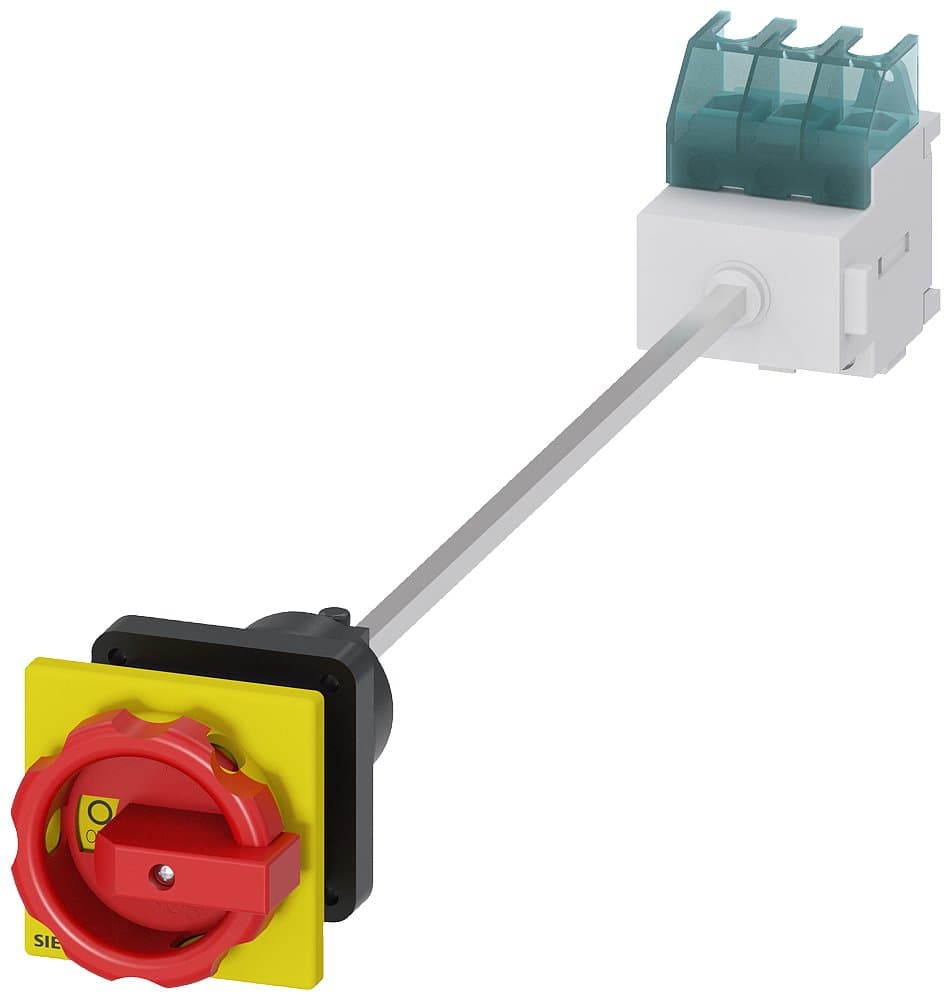

| Description | Isolator switch, main control and emergency stop switch, 3LD2, 25A, 3P, rotary operating mechanism with door coupling, red/yellow handle, base-mounted installation, center hole in cabinet door, AC-23A/9.5KW | Installation Type: | Base-mounted installation, center hole in cabinet door |
| Other: | AC-23A/9.5KW | Poles: | 3P |
| In(A): | 25 | Specification: | 3LD21【25A】 |
| Switch Type: | Rotary operating mechanism with door coupling, red/yellow handle | Lifecycle | Delivery Release (PM300) |
| Country of Origin | Germany | ECCN | N |
| AL | N | Model Number | 3LD2144-0TK53 |
Specifications may be subject to change without notice
