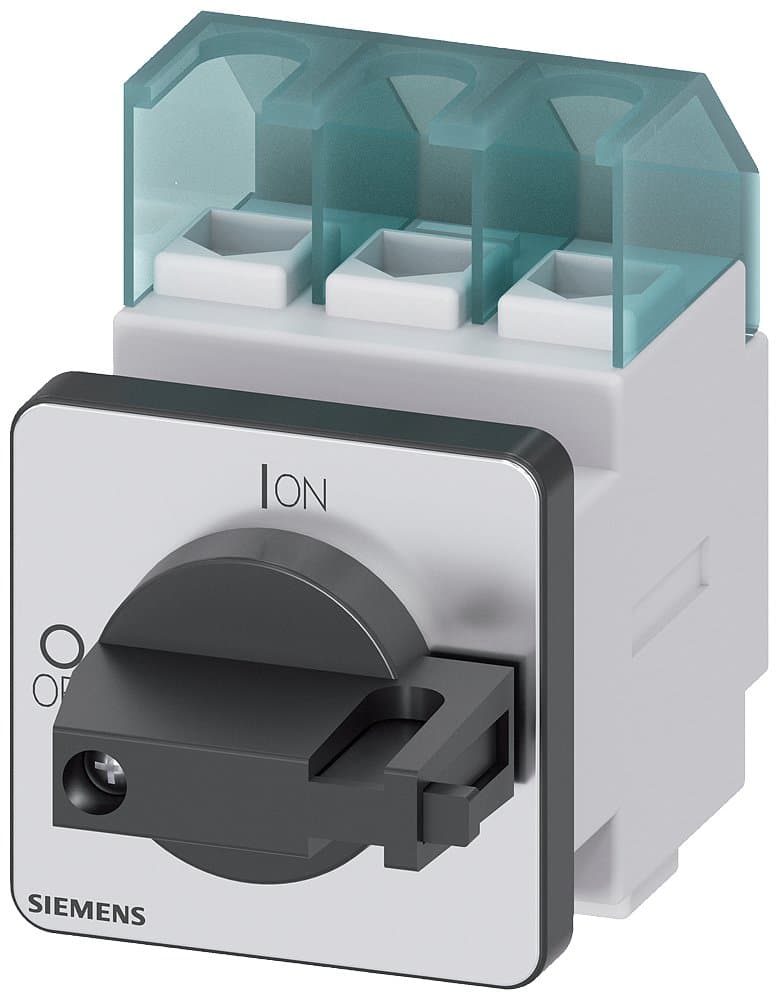

Product Model
3LD2122-0TK11
Key Features
- 1High-power rating: 9.5 kW at 400 V AC
- 23-pole design for robust switching
- 3Floor mounting with door coupling for easy installation
- 4Knob-operated mechanism for secure operation
- 5IP65 rating from the front for enhanced protection
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| AC Rated Voltage (V) | 690 | Insulation Voltage (V) | 690 |
| Description | Isolator switch, main control and emergency stop switch, 3LD2, 25A, 3P, with selector switch operation mechanism, black handle, flush mounted, four-hole installation on cabinet door, AC-23A/9.5KW | Installation Type | Flush mounted cabinet door with four-hole installation |
| Other | AC-23A/9.5KW | Number of Poles | 3P |
| In(A) | 25 | Specification | 3LD21【25A】 |
| Switch Type | With selector switch operation mechanism, black handle | Lifecycle | Delivery Release (PM300) |
| Country of Origin | Germany | ECCN | N |
| AL | N | Model Number | 3LD2122-0TK11 |
Specifications may be subject to change without notice
