Product Model

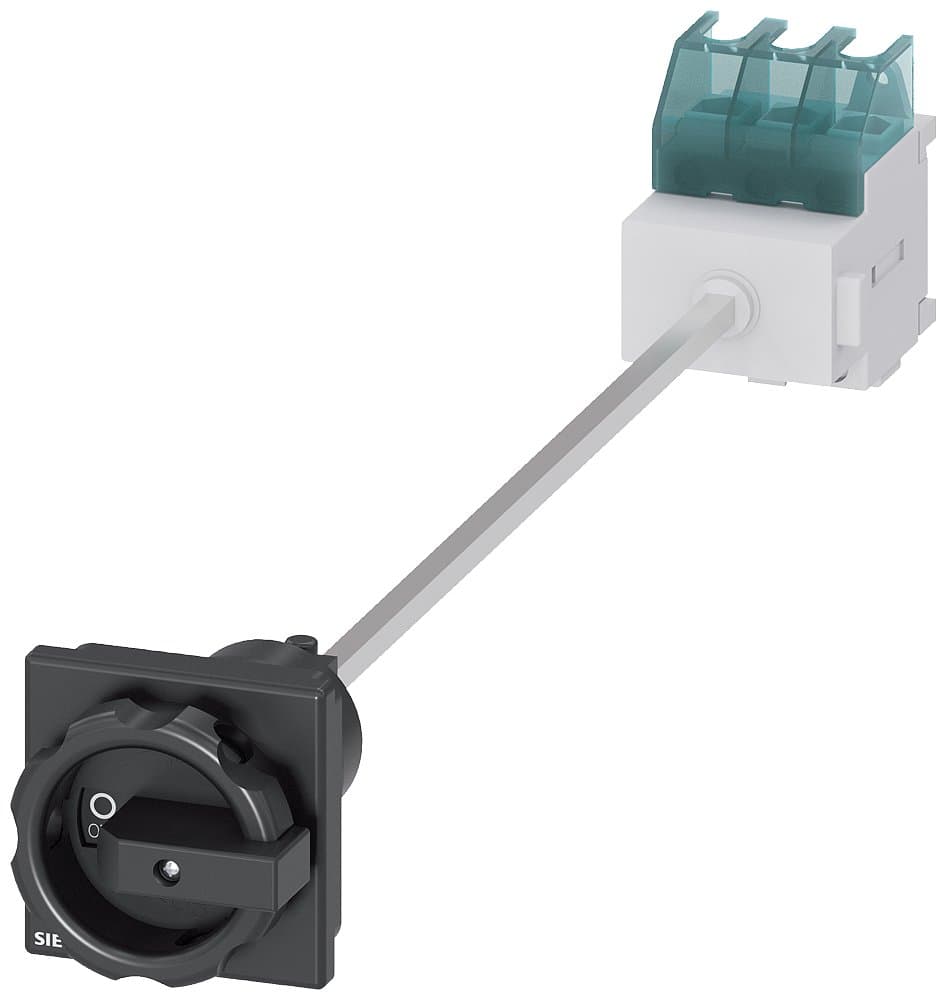

3LD2113-0TK51
Key Features
- 1High Power Rating: Handles up to 9.5 kW at 400 V AC.
- 2Compact Design: Floor mounting with door coupling for efficient space usage.
- 3Robust Construction: IP65 rating from the front for enhanced durability.
- 4Easy Operation: Rotary operating mechanism for smooth switch operation.
- 5Compliance Ready: Meets RoHS and WEEE directives, ensuring environmental compliance.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| AC Rated Voltage(V): | 690 | Insulation Voltage(V): | 690 |
| Description | Isolator Switch, Main and Emergency Stop Switch, 3LD2, 25A, 3P, Rotary Operation Mechanism with Door Coupling, Black Handle, Base-Mounted Installation, Cabinet Door with Four-Hole Fixation, AC-23A/9.5KW | Installation Type: | Base-Mounted Installation, Cabinet Door with Four-Hole Fixation |
| Other: | AC-23A/9.5KW | Number of Poles: | 3P |
| In(A): | 25 | Specification: | 3LD21【25A】 |
| Switch Type: | Rotary Operation Mechanism with Door Coupling, Black Handle | Lifecycle | Delivery Release (PM300) |
| Country of Origin | Germany | ECCN | N |
| AL | N | Model Number | 3LD2113-0TK51 |
Specifications may be subject to change without notice
