Product Model

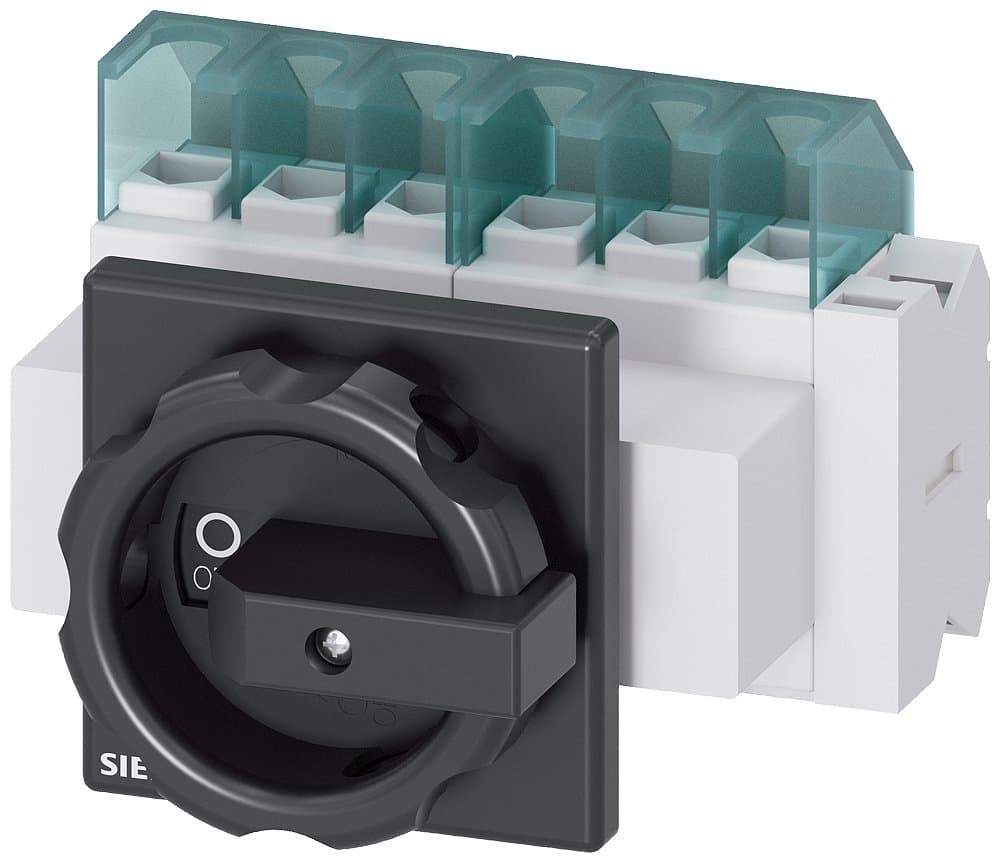

3LD2103-4VP51
Key Features
- 1High-power main switch with 25 A Iu.
- 26-pole configuration for reliable operation.
- 3Front-mounted design for easy access.
- 4Rotary operating mechanism for smooth control.
- 5Compatible with AC-23 A at 400 V for 9.5 kW operating power.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| AC Rated Voltage(V): | 690 | Insulation Voltage(V): | 690 |
| Description | Isolator switch, main and emergency stop switch, 3LD2, 25A, 6P, with rotary operating mechanism, black handle, flush-mounted, four-hole installation on cabinet door, AC-3/7.5KW; AC-23A/9.5KW, 1NO+1NC | Installation Type: | Flush-mounted cabinet door with four-hole installation |
| Other: | AC-3/7.5KW; AC-23A/9.5KW, 1NO+1NC | Number of Poles: | 6P |
| In(A): | 25 | Specification: | 3LD21【25A】 |
| Switch Type: | With rotary operating mechanism, black handle | Lifecycle | Delivery Release (PM300) |
| Country of Origin | Germany | ECCN | N |
| AL | N | Model Number | 3LD2103-4VP51 |
Specifications may be subject to change without notice
