Product Model

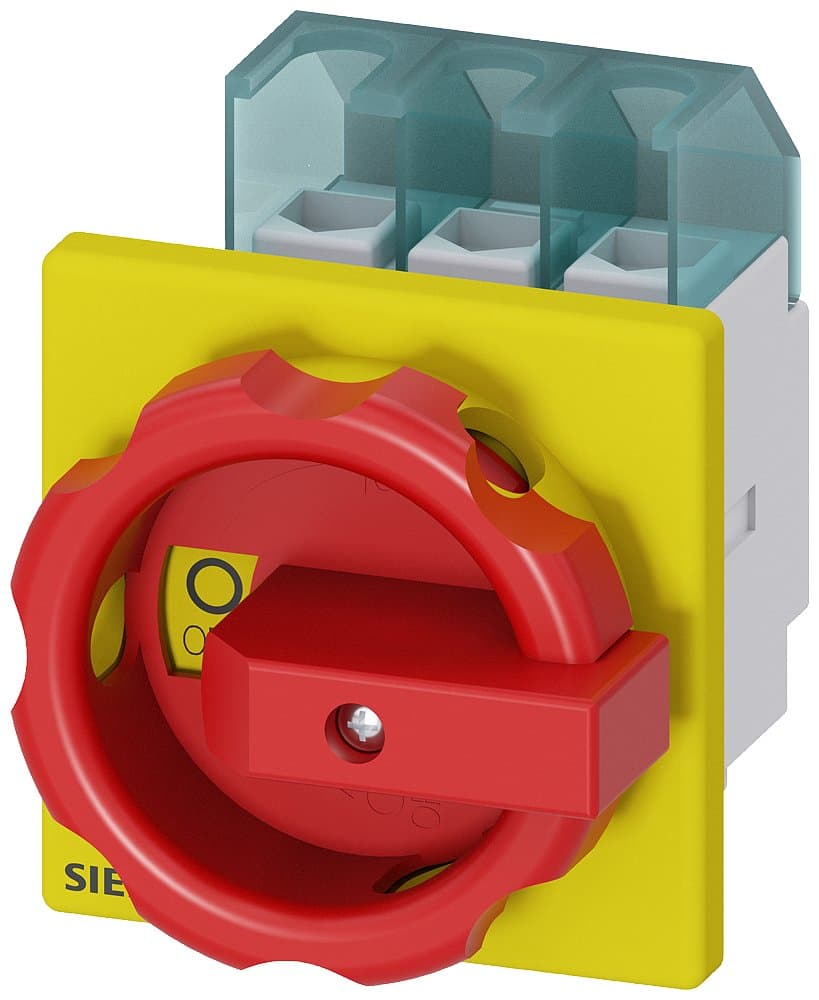

3LD2103-0TK53
Key Features
- 1High Power Rating: Operates at 9.5 kW with AC-23A at 400V.
- 2Safety Features: Finger-safe design and 100,000 switching cycles ensure reliable operation.
- 3Emergency Stop Functionality: Red/yellow rotary actuator for quick and secure shutdown.
- 4Durable Construction: Front mounting with 4-hole attachment for secure installation.
- 5Compliance and Certifications: Meets IP65 protection class and complies with DIN EN 61346-2 standards.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| AC Rated Voltage(V): | 690 | Insulation Voltage(V): | 690 |
| Description | Isolator switch, main control and emergency stop switch, 3LD2, 25A, 3P, with rotary operating mechanism, red/yellow handle, flush mounted, four-hole installation on cabinet door, AC-3/7.5KW; AC-23A/9.5KW | Installation Type: | Flush mounted cabinet door with four-hole installation |
| Others: | AC-3/7.5KW; AC-23A/9.5KW | Poles: | 3P |
| In(A): | 25 | Specification: | 3LD21【25A】 |
| Switch Type: | With rotary operating mechanism, red/yellow handle | Lifecycle | Delivery Release (PM300) |
| Country of Origin | Germany | ECCN | N |
| AL | N | Model Number | 3LD2103-0TK53 |
Specifications may be subject to change without notice
