Product Model
3LD2022-0TK11
Key Features
- 1High-Voltage Capability: Designed for AC-23A at 400 V, ensuring reliable operation in demanding electrical environments.
- 2Efficient Power Handling: Capable of handling up to 7.5 kW of operating power, making it suitable for various industrial applications.
- 3Front-Mounted Mechanism: Easy to operate with a front-mounted knob-operated mechanism, enhancing user convenience.
- 4Black Finish: Durable black finish for longevity and aesthetic appeal.
- 5Compliance with Standards: Meets IEC 60947-3 and UL 508 standards, ensuring compliance with industry regulations.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| AC Rated Voltage (V) | 690 | Insulation Voltage (V) | 690 |

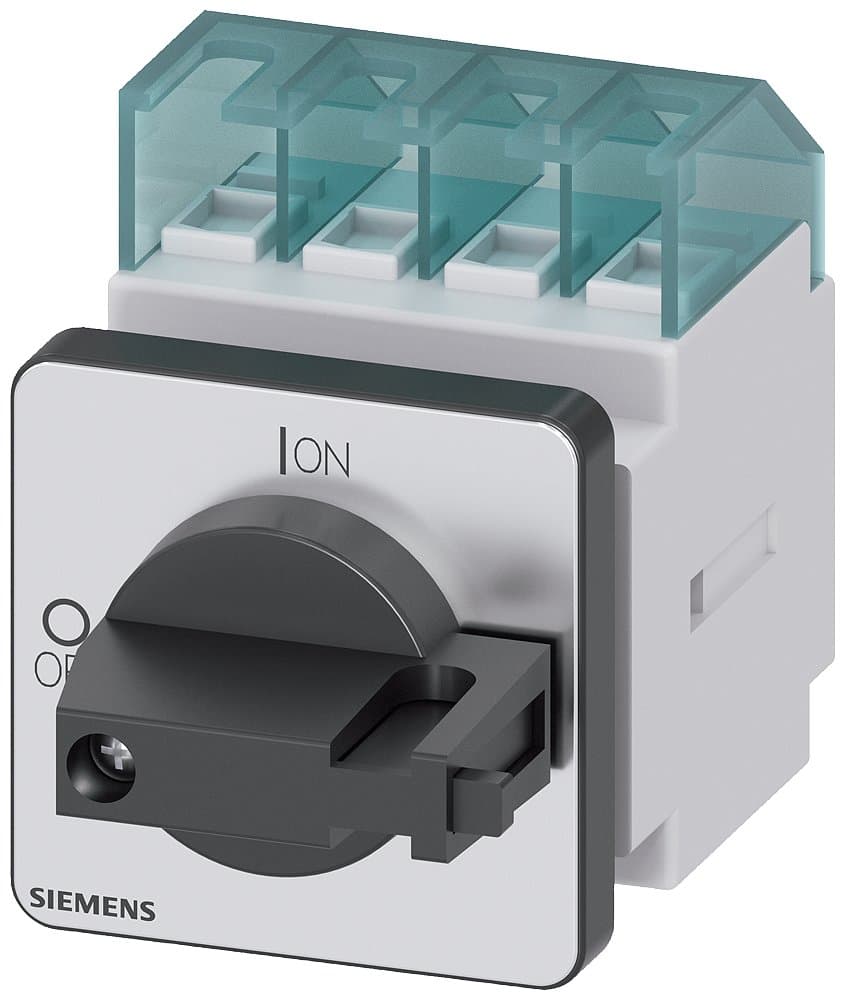

| Description | Isolator Switch, Main Control and Emergency Stop Switch, 3LD2, 16A, 3P, With Selector Switch Operation Mechanism, Black Handle, Flush Mounting, Cabinet Door Four-Hole Installation, AC-23A/7.5KW | Installation Type | Flush Mounting Cabinet Door Four-Hole Installation |
| Other | AC-23A/7.5KW | Number of Poles | 3P |
| In(A) | 16 | Specification | 3LD20【16A】 |
| Switch Type | With Selector Switch Operation Mechanism, Black Handle | Lifecycle | Delivery Release (PM300) |
| Country of Origin | Germany | ECCN | N |
| AL | N | Model Number | 3LD2022-0TK11 |
Specifications may be subject to change without notice
