Product Model

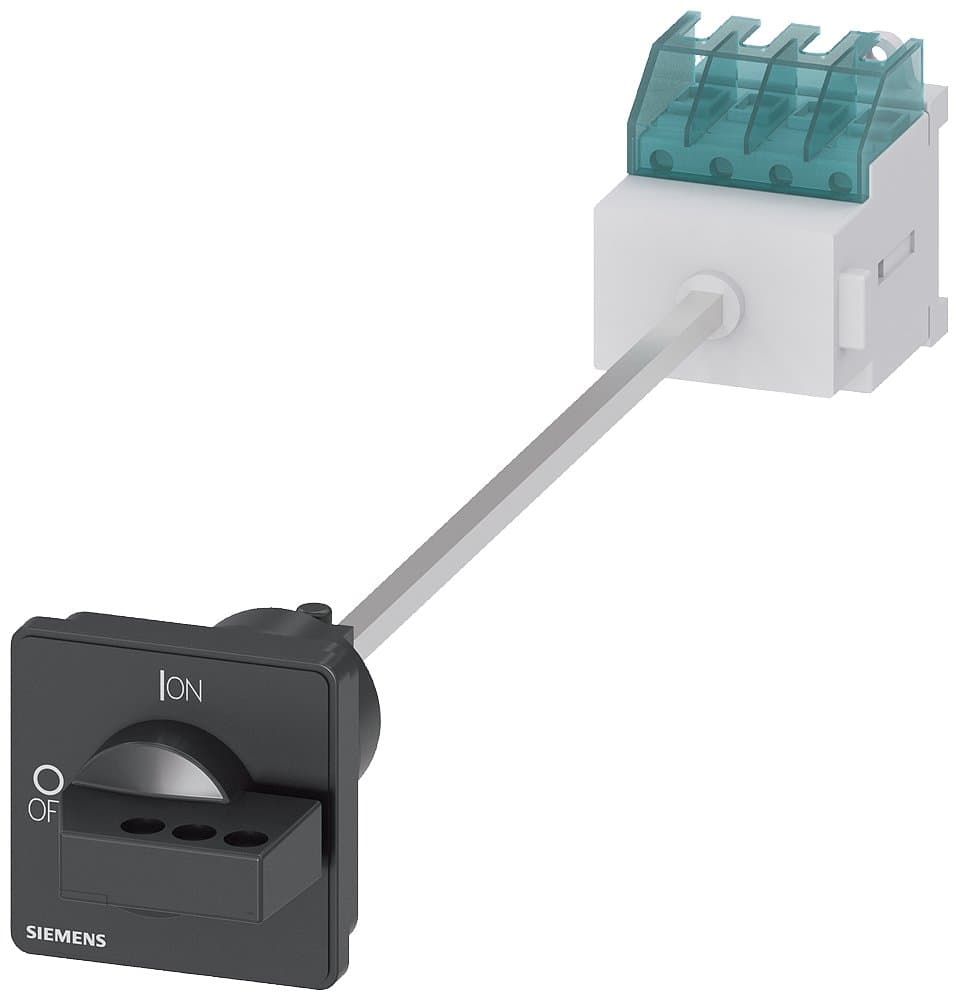

3LD2017-1TL11
Key Features
- 1Reliable main switch for high-voltage applications.
- 24-pole design for enhanced electrical safety and control.
- 3Current rating of 16A for efficient power distribution.
- 4Operating power of 7.5 kW at 400V AC for robust performance.
- 5Floor mounting with door coupling for easy installation and maintenance.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| AC Rated Voltage(V): | 690 | Insulation Voltage(V): | 690 |
| Description | Isolator Switch, Main and Emergency Stop Switch, 3LD2, 16A, 3P+N, With Removable Door Coupled Rotary Operating Mechanism, Black Handle, Base-mounted Installation, Cabinet Door Four-Hole Installation, AC-23A/7.5KW, UL508 Certified | Installation Type: | Base-mounted Installation, Cabinet Door Four-Hole Installation |
| Other: | AC-23A/7.5KW, UL508 Certified | Number of Poles: | 3P+N |
| In(A): | 16 | Specification: | 3LD20【16A】 |
| Switch Type: | With Removable Door Coupled Rotary Operating Mechanism, Black Handle | Lifecycle | Delivery Release (PM300) |
| Country of Origin | Germany | ECCN | N |
| AL | N | Model Number | 3LD2017-1TL11 |
Specifications may be subject to change without notice
