Product Model
3LD2013-1TL51
Key Features
- 1Robust 4-Pole Configuration: Designed for reliability and efficiency in high-voltage applications.
- 2Current Rating of 16 A: Suitable for a wide range of electrical systems.
- 3Operating Power of 7.5 kW: Handles significant electrical loads with ease.
- 4Floor Mounting with Door Coupling: Easy installation and secure operation.
- 5Durable SENTRON Technology: Built to last with high-quality components and design.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| AC Rated Voltage(V): | 690 | Insulation Voltage(V): | 690 |

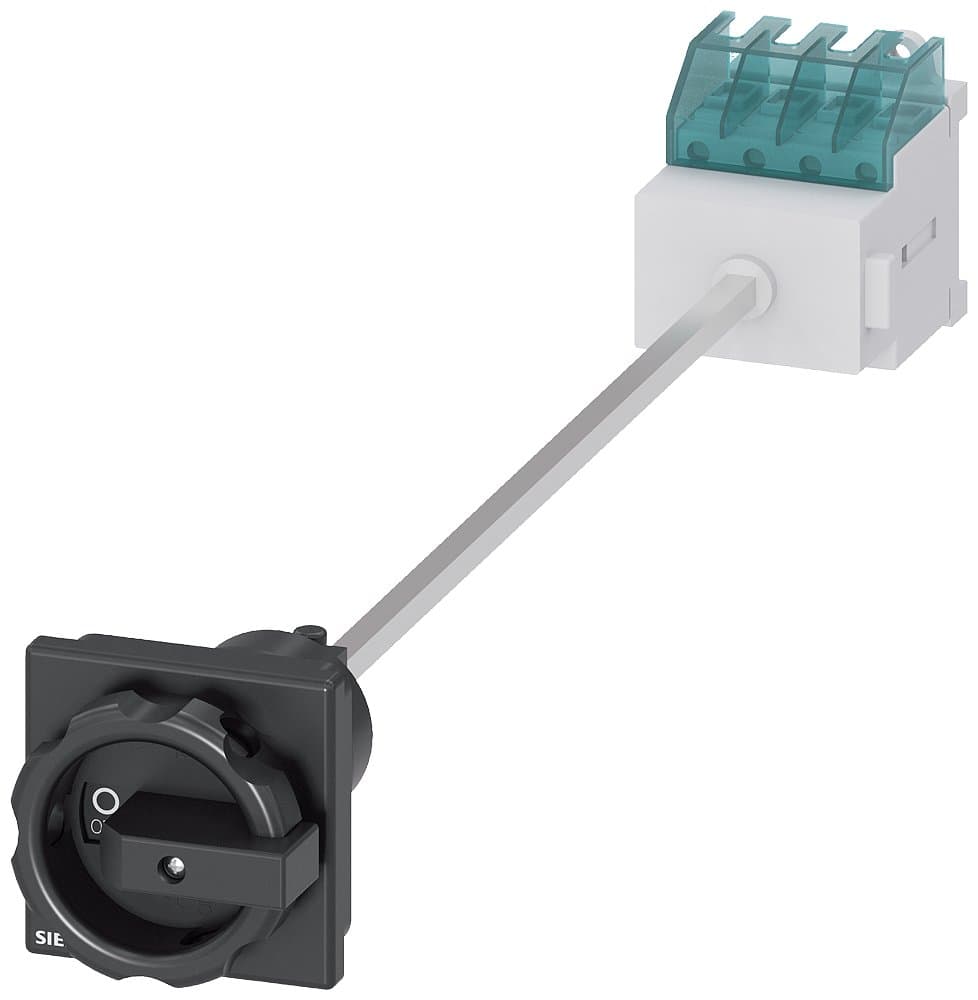

| Description | Isolator switch, main and emergency stop switch, 3LD2, 16A, 3P+N, rotary operating mechanism with door coupling, black handle, base-mounted installation, four-hole mounting on cabinet door, AC-23A/7.5KW | Installation Type: | Base-mounted installation, four-hole mounting on cabinet door |
| Other: | AC-23A/7.5KW | Number of Poles: | 3P+N |
| In(A): | 16 | Specification: | 3LD20【16A】 |
| Switch Type: | Rotary operating mechanism with door coupling, black handle | Lifecycle | Delivery Release (PM300) |
| Country of Origin | Germany | ECCN | N |
| AL | N | Model Number | 3LD2013-1TL51 |
Specifications may be subject to change without notice
