Product Model
3LD2003-0TK53
Key Features
- 1Reliable emergency switching-off solution for industrial applications.
- 23-pole switch disconnector with high voltage and current ratings.
- 3SENTRON product line ensures safety and efficiency.
- 4Free delivery on all orders for registered users.
- 5Easy login and user-specific settings for seamless ordering experience.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| AC Rated Voltage(V): | 690 | Insulation Voltage(V): | 690 |

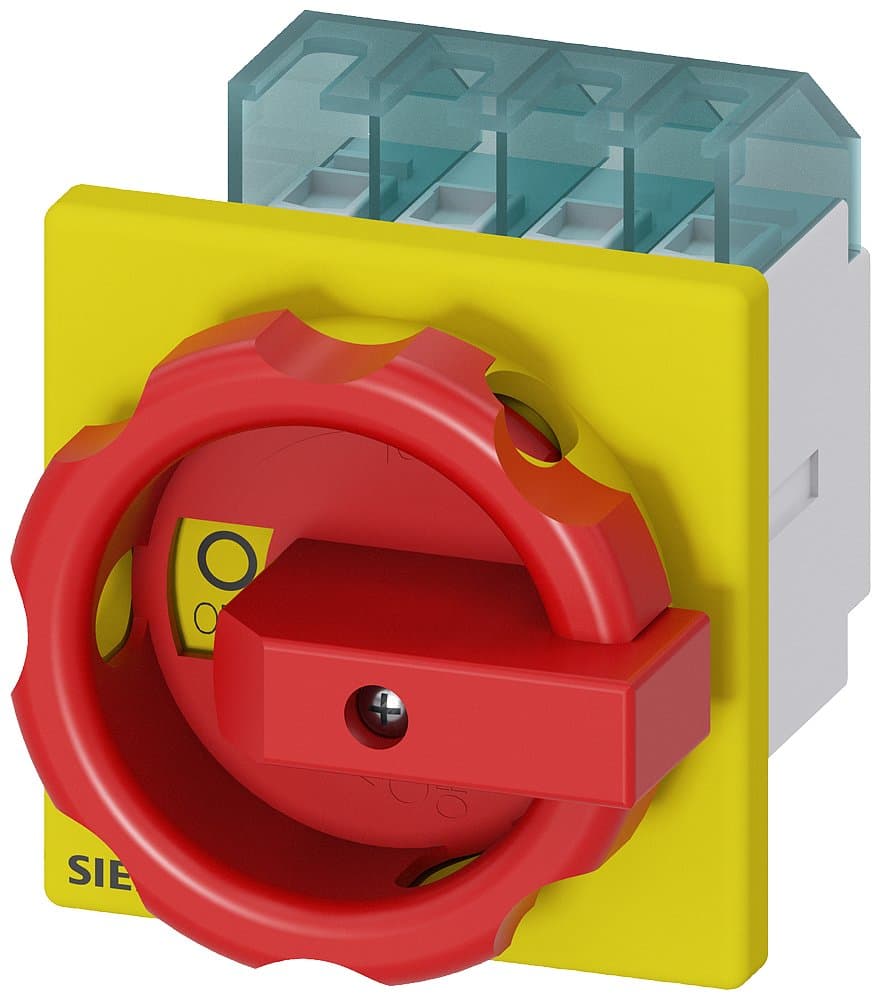

| Description | Isolator switch, main control and emergency stop switch, 3LD2, 16A, 3P, with rotary operating mechanism, red/yellow handle, flush mounted, four-hole installation on cabinet door, AC-3/5.5KW; AC-23A/7.5KW | Installation Type: | Flush mounted cabinet door with four-hole installation |
| Others: | AC-3/5.5KW; AC-23A/7.5KW | Poles: | 3P |
| In(A): | 16 | Specification: | 3LD20【16A】 |
| Switch Type: | With rotary operating mechanism, red/yellow handle | Lifecycle | Delivery Release (PM300) |
| Country of Origin | Germany | ECCN | N |
| AL | N | Model Number | 3LD2003-0TK53 |
Specifications may be subject to change without notice
