Product Model

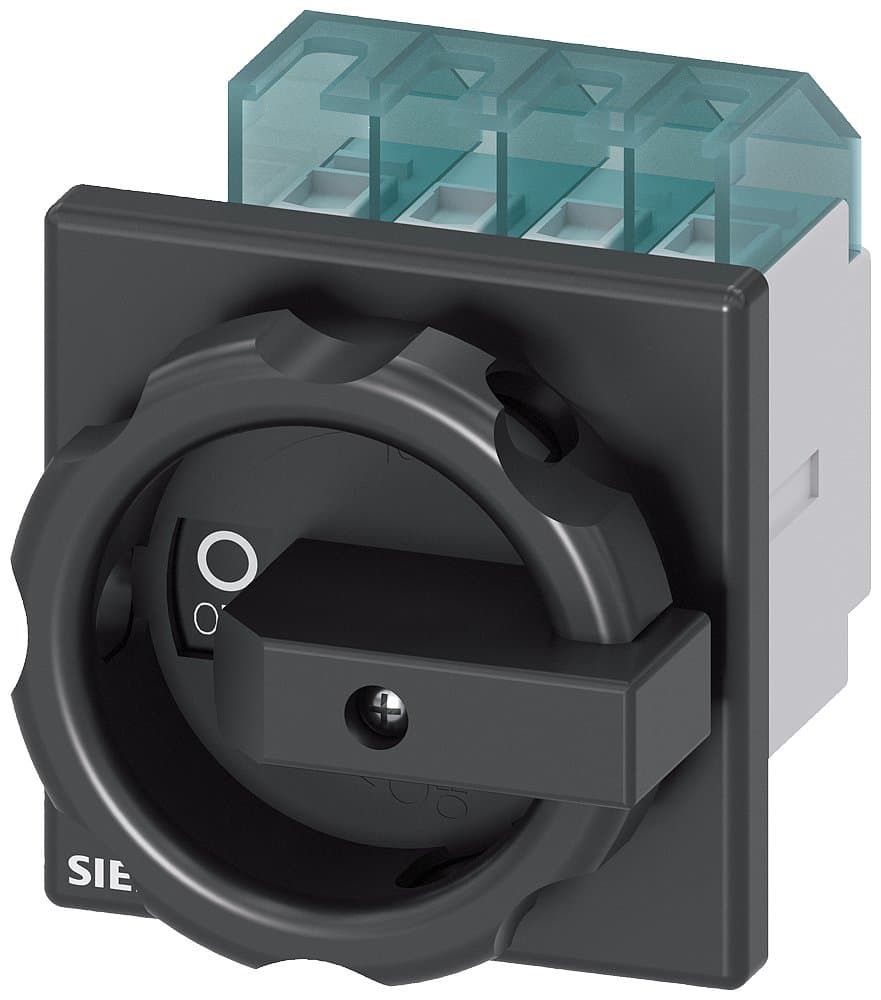

3LD2003-0TK51
Key Features
- 1High reliability and efficiency in electrical systems
- 2Suitable for 690 VAC applications
- 33-pole design with front-mounted rotary mechanism
- 4Compact and durable construction
- 5Compliance with RoHS and WEEE directives
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| AC Rated Voltage(V): | 690 | Insulation Voltage(V): | 690 |
| Description | Isolator switch, main and emergency stop switch, 3LD2, 16A, 3P, with rotary operating mechanism, black handle, flush mounting, four-hole fixing in cabinet door, AC-3/5.5KW; AC-23A/7.5KW | Installation Type: | Flush mounting in cabinet door with four-hole fixing |
| Other: | AC-3/5.5KW; AC-23A/7.5KW | Number of Poles: | 3P |
| In(A): | 16 | Specification: | 3LD20【16A】 |
| Switch Type: | With rotary operating mechanism, black handle | Lifecycle | Delivery Release (PM300) |
| Country of Origin | Germany | ECCN | N |
| AL | N | Model Number | 3LD2003-0TK51 |
Specifications may be subject to change without notice
