Product Model

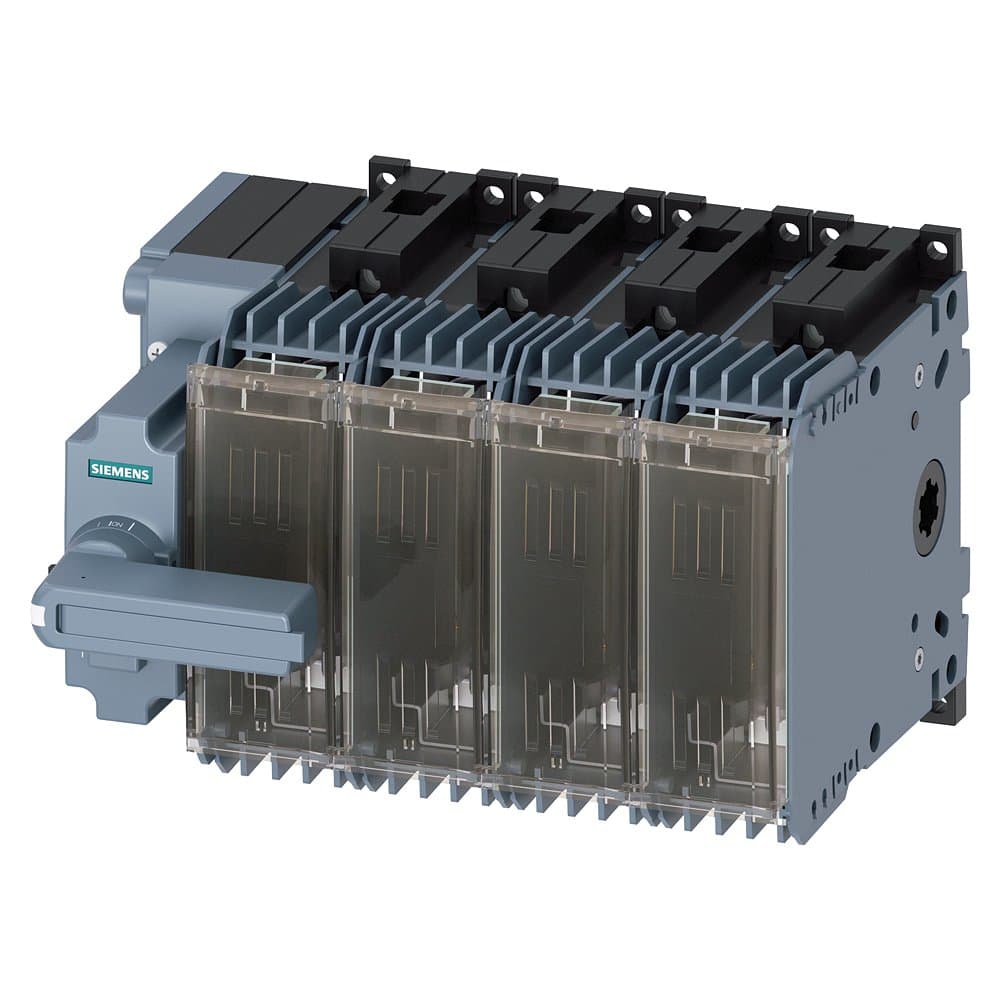

3KF1408-2LB11
Key Features
- 1Handles up to 80A for reliable power management.
- 2Size 1 for space-efficient installations in LV HRC fuse applications.
- 3Suitable for various electrical configurations and safety protocols.
- 4Easy access and operation from the front side.
- 5Includes a direct operating mechanism for seamless integration and control.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| DC Insulation Voltage (V) | 220VDC/440VDC | AC Rated Voltage (V) | 690 |
| Insulation Voltage (V) | 1000 | Description | 3KF LV HRC (General Fuse), rated current 80A, kit type, front operation, with direct operating mechanism gray handle, surface mounting |
| Mounting Type | Surface Mounting | Fuse Specification | Size: 00/000 |
| Terminal Type | Box Terminal | Number of Poles | 4P |
| In(A) | 80 | Specification | 3KF1_80 |
| Switch Type | Kit type, front operation, with direct operating mechanism gray handle | Lifecycle | Delivery Release (PM300) |
| Country of Origin | China | ECCN | N |
| AL | N | Model Number | 3KF1408-2LB11 |
Specifications may be subject to change without notice
