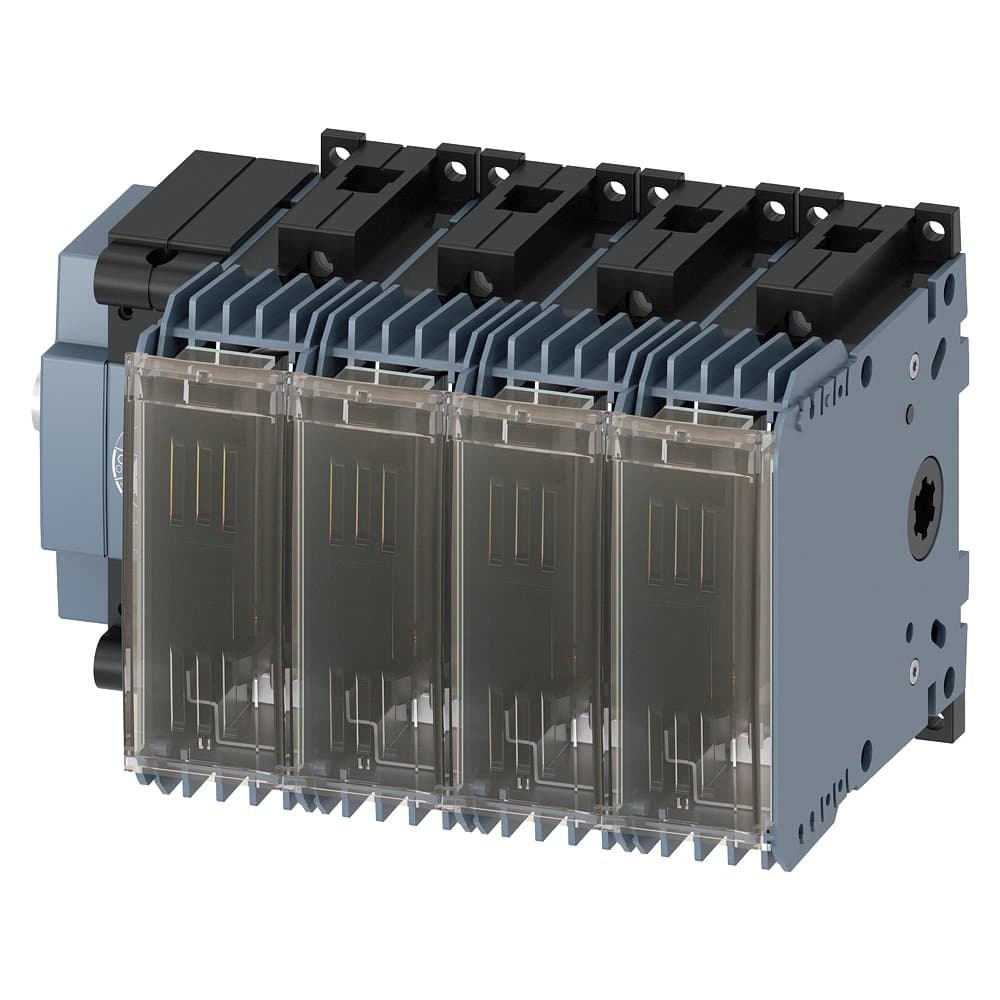

Product Model
3KF1406-4LB11
Key Features
- 1Built with durable materials for long-lasting performance.
- 2Easy-to-use handle for smooth operation.
- 3Suitable for space-limited installations.
- 4Ensures maximum protection against dust and water.
- 5Meets stringent safety standards for electrical installations.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| DC Insulation Voltage (V) | 220VDC/440VDC | AC Rated Voltage (V) | 690 |
| Insulation Voltage (V) | 1000 | Description | 3KF LV HRC (general fuse), rated current 63A, basic unit — side operation mechanism, no handle, operation mechanism module located on the left side of the switch, surface mount |
| Mounting Type | Surface mount | Fuse Specification | Size: 00/000 |
| Terminal Type | Box terminal | Number of Poles | 4P |
| In(A) | 63 | Specification | 3KF1_63 |
| Switch Type | Basic unit, side operation mechanism, no handle, operation mechanism module located on the left side of the switch | Lifecycle | Delivery Release (PM300) |
| Country of Origin | China | ECCN | N |
| AL | N | Model Number | 3KF1406-4LB11 |
Specifications may be subject to change without notice
