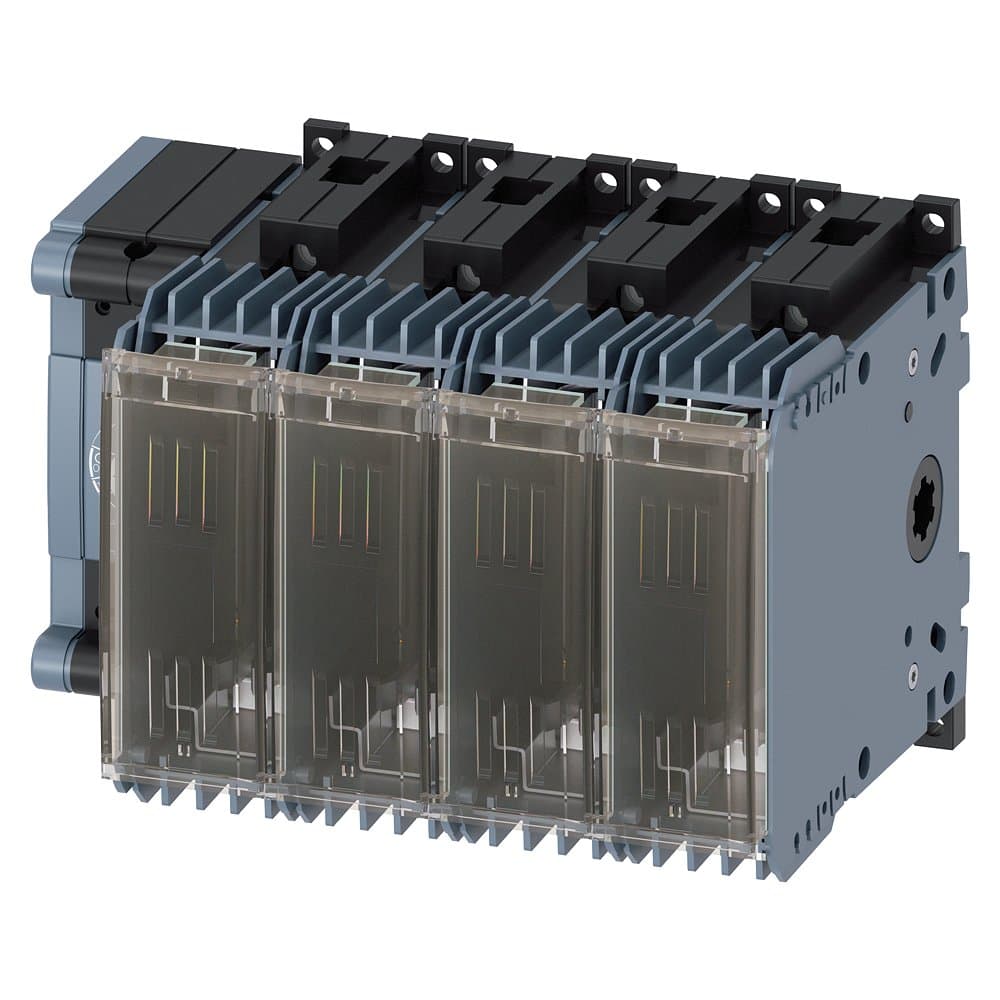

Product Model
3KF1403-0LB11
Key Features
- 1High reliability and safety in electrical installations.
- 2Compatible with LV HRC fuse Sz. 000 Front.
- 34-pole switch disconnector for efficient power distribution.
- 4Designed for permanent switch-on and switch-off under load.
- 5Meets stringent IEC 60947-3 and UL 508 standards for quality assurance.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| DC Insulation Voltage (V): | 220VDC/440VDC | AC Rated Voltage (V): | 690 |
| Insulation Voltage (V): | 1000 | Description | 3KF LV HRC (General Fuse), Rated Current 32A, Basic Unit — Front Operation Mechanism, No Handle, Operation Mechanism Module on the Left Side of the Switch, Surface Mounting |
| Mounting Type: | Surface Mounting | Fuse Specification: | Size: 00/000 |
| Terminal Type: | Box Terminal | Number of Poles: | 4P |
| In(A): | 32 | Specification: | 3KF1_32 |
| Switch Type: | Basic Unit, Front Operation Mechanism, No Handle, Operation Mechanism Module on the Left Side of the Switch | Lifecycle | Delivery Release (PM300) |
| Country of Origin | China | ECCN | N |
| AL | N | Model Number | 3KF1403-0LB11 |
Specifications may be subject to change without notice
