Product Model

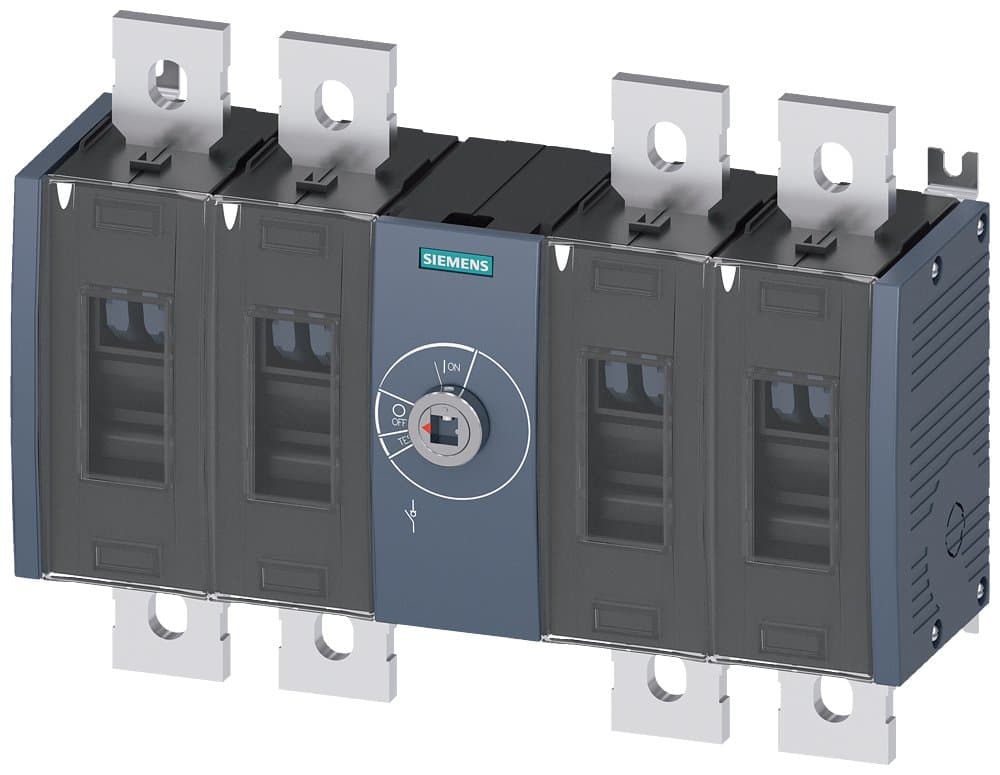

3KD5040-0QE20-0
Key Features
- 1High-current rating of 1000A for reliable operation.
- 2Compact size (Size 4) for space-efficient installations.
- 34-pole front operating mechanism for easy control.
- 4Emergency switching-off capability for safety.
- 5Tolerance compensation for precise performance.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| DC Insulation Voltage (V) | 220VDC/440VDC/1000VDC | AC Rated Voltage (V) | 690 |
| Insulation Voltage (V) | 1000 | Description | 3KD Specification 4; Rated Current 1000A; 4P; Basic unit without handle, front operation mechanism located at the center of the switch; Flat connection |
| Mounting Type | Surface Mount | Terminal Type | Flat Connection |
| Number of Poles | 4P | In(A) | 1000 |
| Specification | 3KD Specification 4 [500-1000A] | Switch Type | Basic unit without handle, front operation mechanism located at the center of the switch |
| Lifecycle | Delivery Release (PM300) | Country of Origin | China |
| ECCN | N | AL | N |
| Model Number | 3KD5040-0QE20-0 |
Specifications may be subject to change without notice
