Product Model

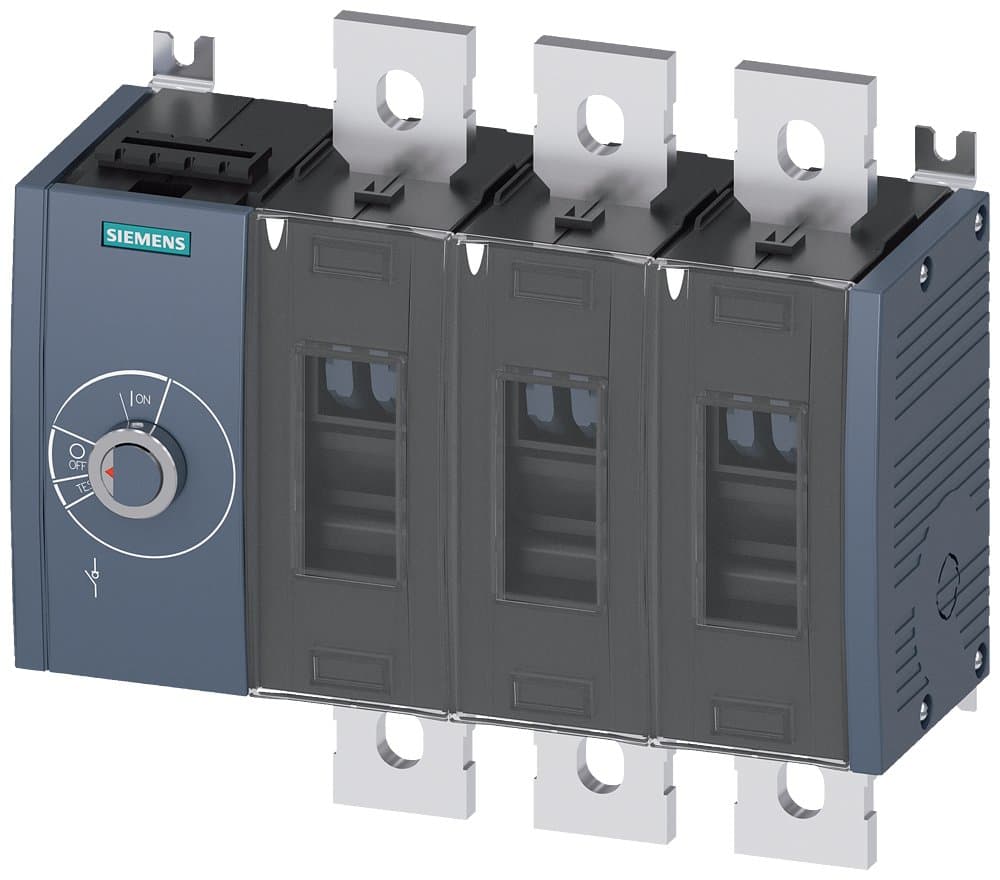

3KD4434-0QE10-0
Key Features
- 1High Current Capacity: Handles up to 500A for robust electrical connections.
- 2Compact Design: Measures 100 x 100 mm for space-efficient installations.
- 3Lateral Operating Mechanism: Easy to operate with a left-hand drive mechanism.
- 4IP00 and IP20 Ratings: Ensures reliable operation in various environmental conditions.
- 5Durable Construction: Built with high-quality materials for long-lasting performance.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| DC Insulation Voltage (V) | 220VDC/440VDC/1000VDC | AC Rated Voltage (V) | 690 |
| Insulation Voltage (V) | 1000 | Description | 3KD Specification 4; Rated Current 500A; 3P; Basic unit without handle, side operation mechanism located on the left side of the switch; Surface mount; Flat connection |
| Mounting Type | Surface Mount | Terminal Type | Flat Connection |
| Number of Poles | 3P | In(A) | 500 |
| Specification | 3KD Specification 4 [500-1000A] | Switch Type | Basic unit without handle, side operation mechanism located on the left side of the switch |
| Lifecycle | Delivery Release (PM300) | Country of Origin | China |
| ECCN | N | AL | N |
| Model Number | 3KD4434-0QE10-0 |
Specifications may be subject to change without notice
