Product Model

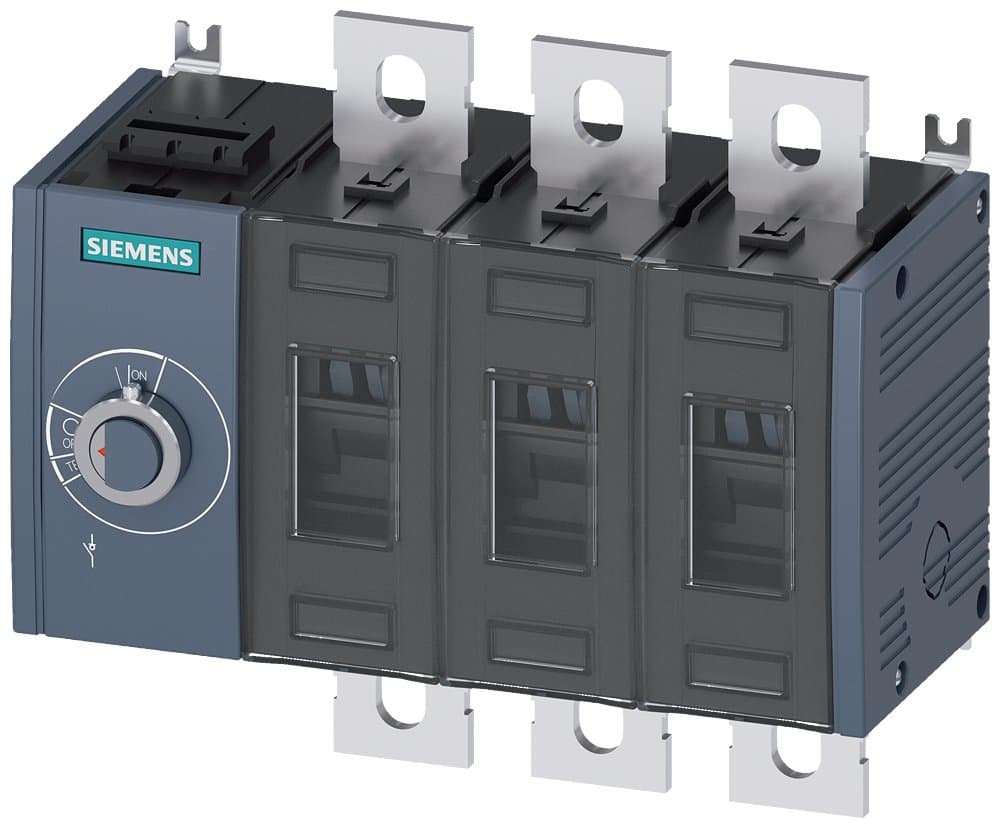

3KD4434-0PE10-0
Key Features
- 1Designed for reliable operation under load conditions.
- 2Protects users from electric shock with permanent switch-on and switch-off capabilities.
- 3Suitable for floor mounting, standard mounting rail, and front mounting options.
- 4Ensures maximum achievable IP degree of protection with a rotary operating mechanism.
- 5Meets UL 508 and UL489 standards for electrical safety and performance.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| DC Insulation Voltage (V) | 220VDC/440VDC/1000VDC | AC Rated Voltage (V) | 690 |
| Insulation Voltage (V) | 1000 | Description | 3KD_Specification 3; Rated Current 500A; 3P; Basic unit without handle, side operation mechanism on the left side of the switch; Flat Connection |
| Installation Type | Surface Mount | Terminal Type | Flat Connection |
| Number of Poles | 3P | In(A) | 500 |
| Specification | 3KD_Specification 3 [200-500A] | Switch Type | Basic unit without handle, side operation mechanism on the left side of the switch |
| Lifecycle | Delivery Release (PM300) | Country of Origin | China |
| ECCN | N | AL | N |
| Model Number | 3KD4434-0PE10-0 |
Specifications may be subject to change without notice
