Product Model

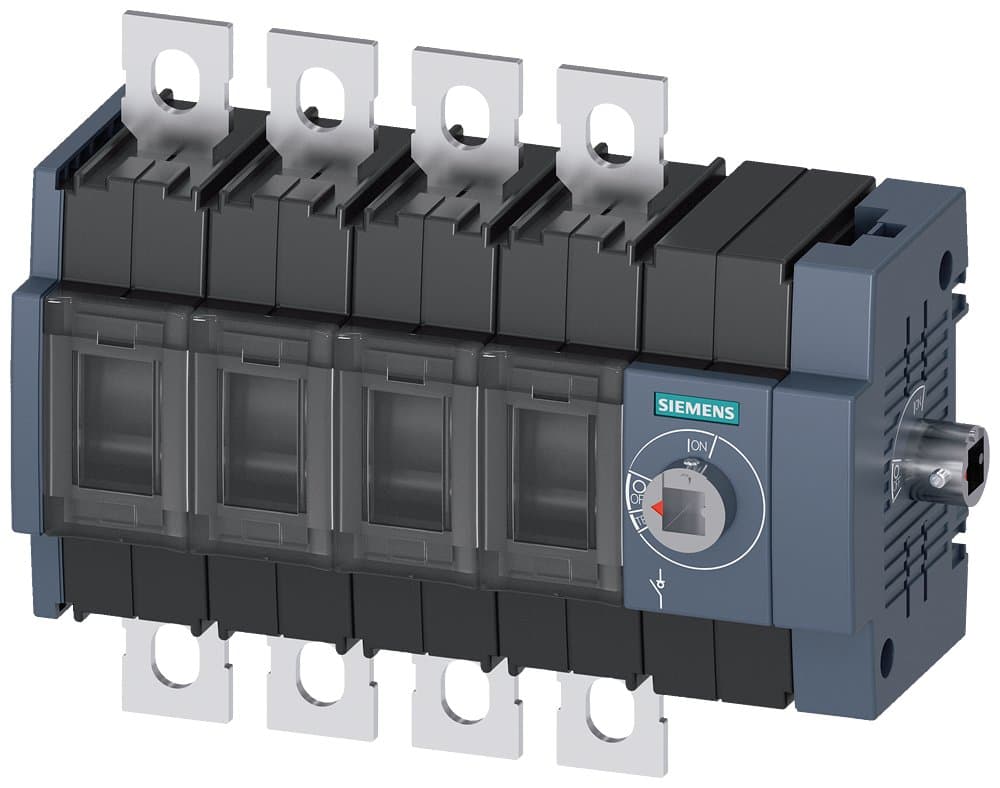

3KD3844-0NE40-0
Key Features
- 1High-current rating up to 250A.
- 2Compact frame size 2 design.
- 34-pole lateral drive mechanism for efficient operation.
- 4Basic unit without handle for easy installation.
- 5Suitable for main switches, safety switches, and emergency off functions.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| DC Insulation Voltage (V) | 220VDC/440VDC/1000VDC | AC Rated Voltage (V) | 690 |
| Insulation Voltage (V) | 1000 | Description | 3KD Specification 2; Rated Current 250A; 4P; Basic unit without handle, side operation mechanism located on the right side of the switch; Flat connection |
| Mounting Type | Surface Mount | Terminal Type | Flat Connection |
| Number of Poles | 4P | In(A) | 250 |
| Specification | 3KD Specification 2 [160-250A] | Switch Type | Basic unit without handle, side operation mechanism located on the right side of the switch |
| Lifecycle | Delivery Release (PM300) | Country of Origin | China |
| ECCN | N | AL | N |
| Model Number | 3KD3844-0NE40-0 |
Specifications may be subject to change without notice
