Product Model

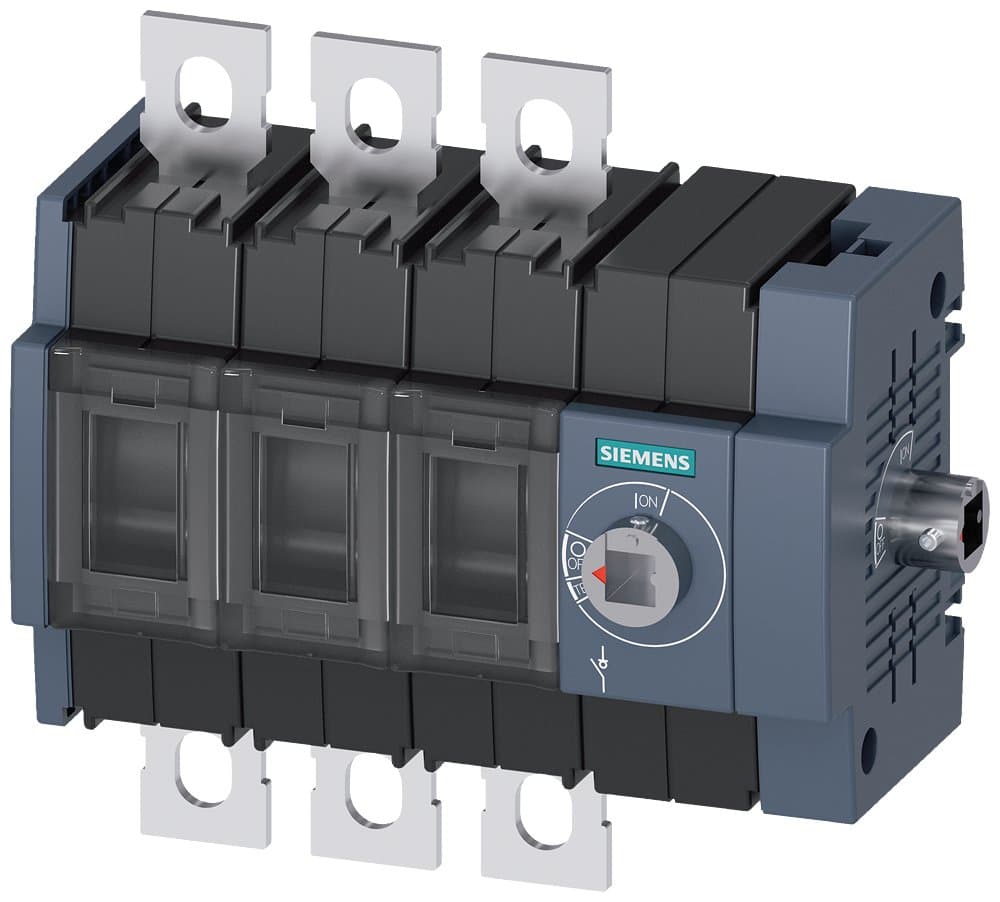

3KD3434-0NE40-0
Key Features
- 1Emergency Switching-Off Capability: Designed for immediate shutdown in critical situations.
- 2Tolerance Compensation: Ensures precise operation despite minor variations.
- 3Compact Design: Measures 75x75 mm with an 8x8 mm shaft, 300 mm length.
- 4Durable Construction: Built for long-lasting performance in industrial processes.
- 5Complete Unit Handle: Includes a handle for easy operation and control.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| DC Insulation Voltage (V) | 220VDC/440VDC/1000VDC | AC Rated Voltage (V) | 690 |
| Insulation Voltage (V) | 1000 | Description | 3KD Specification 2; Rated Current 160A; 3P; Basic unit without handle, side operation mechanism located on the right side of the switch; Surface mount; Flat connection |
| Mounting Type | Surface Mount | Terminal Type | Flat Connection |
| Number of Poles | 3P | In(A) | 160 |
| Specification | 3KD Specification 2 [160-250A] | Switch Type | Basic unit without handle, side operation mechanism located on the right side of the switch |
| Lifecycle | Delivery Release (PM300) | Country of Origin | China |
| ECCN | N | AL | N |
| Model | 3KD3434-0NE40-0 |
Specifications may be subject to change without notice
