Product Model

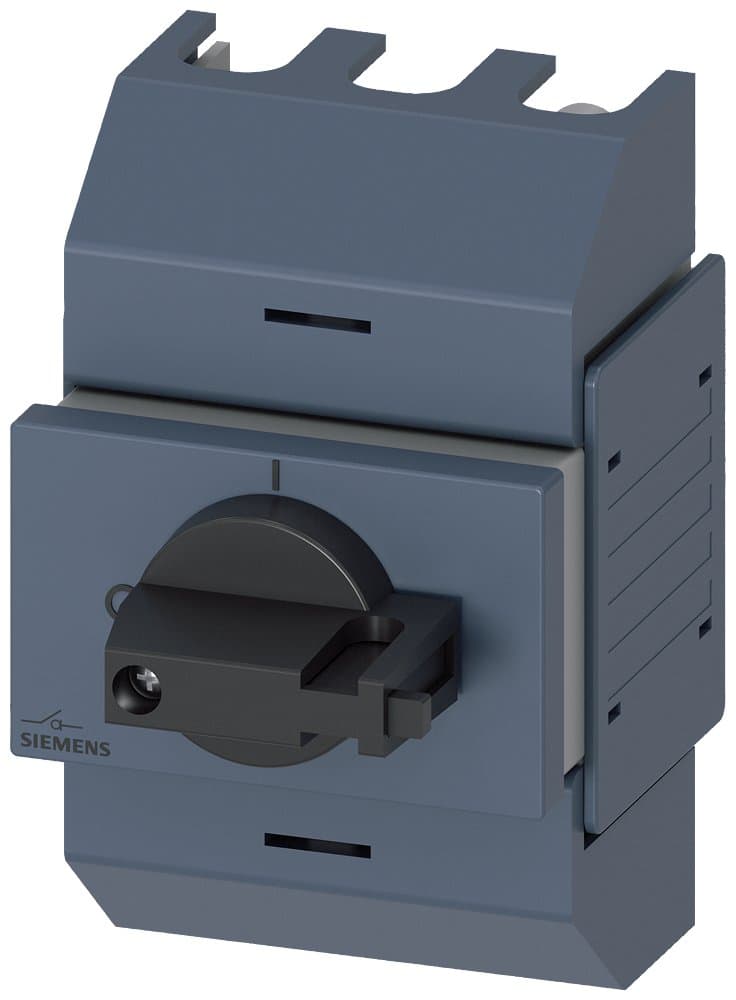

3KD0232-2KG20-3
Key Features
- 1Highly Reliable Electrical Component: Designed for consistent performance in demanding electrical environments.
- 2Versatile Mounting Options: Suitable for front, floor, and intermediate mounting configurations.
- 3Compact Design: Compact size (96.00 x 115.00 x 95.00 mm) for easy integration into systems.
- 4Compliant with Regulations: Meets RoHS directive since 2020 and WEEE take-back obligations.
- 5Easy Installation: Complete unit with direct operating mechanism for straightforward setup.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| DC Insulation Voltage (V) | 220VDC/440VDC/1000VDC | AC Rated Voltage (V) | 690 |
| Insulation Voltage (V) | 1000 | Description | 3KD_Specification 01; Rated Current 32A; 3P; Complete set type, front operation, box terminal, with direct operation mechanism grey handle |
| Mounting Type | Surface Mount | Terminal Type | Box Terminal |
| Number of Poles | 3P | In(A) | 32 |
| Specification | 3KD_Specification 01 [16-63A] | Switch Type | Complete set type, front operation, box terminal, with direct operation mechanism grey handle |
| Lifecycle | Delivery Release (PM300) | Country of Origin | Germany |
| ECCN | N | AL | N |
| Model Number | 3KD0232-2KG20-3 |
Specifications may be subject to change without notice
