Product Model

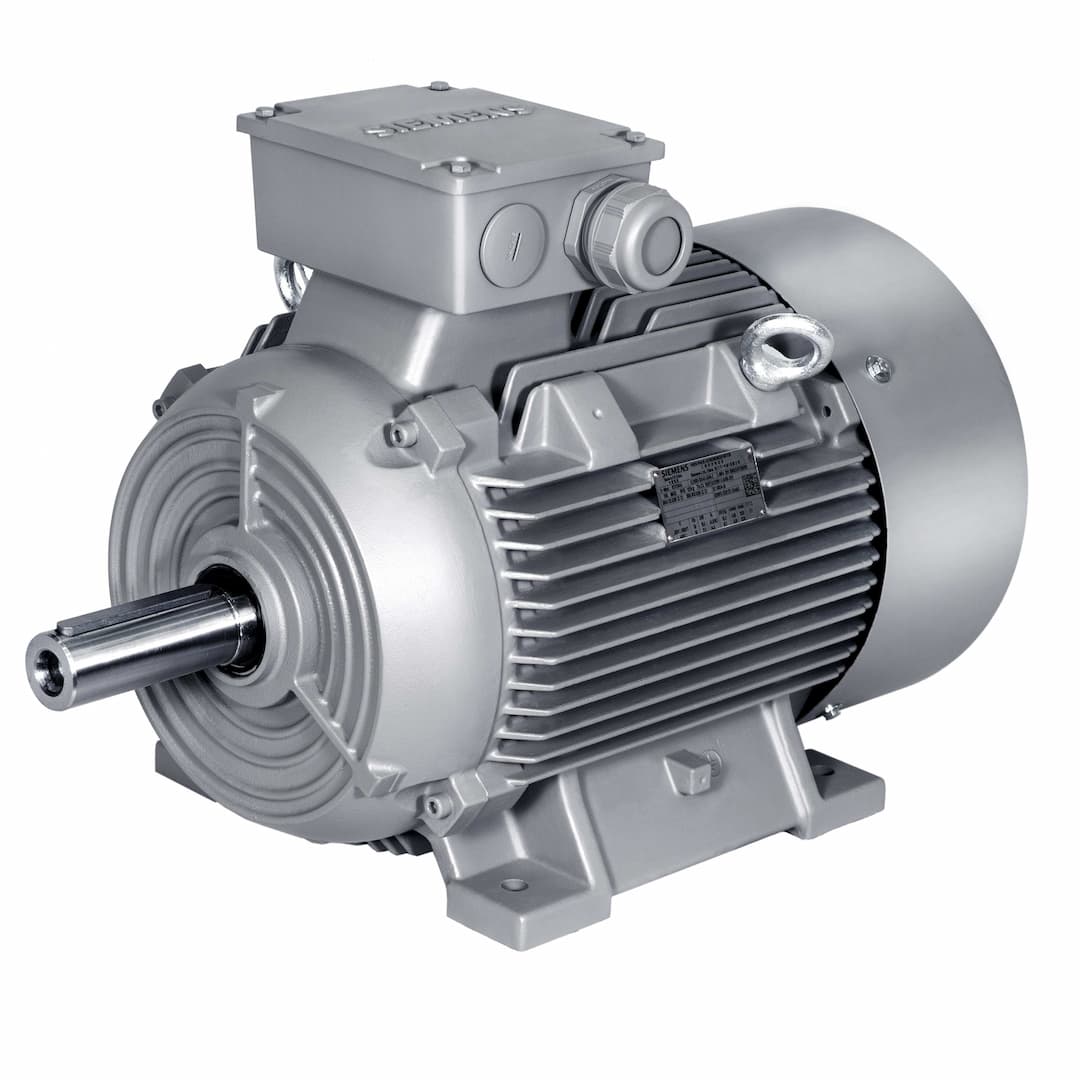

1LE0004-2DB23-3FA4
Key Features
- 1Achieves IE4 efficiency class, reducing energy consumption and increasing motor lifespan.
- 2Ensures reliable operation in harsh environments with a high level of protection against dust and water.
- 3Optimized for space-saving installations with a robust grey cast iron frame.
- 4Suitable for continuous duty operation (S1) and adjustable speed applications.
- 5Standard radial flow fan for effective cooling, with optional separately driven fan for increased performance at low speeds.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Unit Weight | 690kg | Operating Ambient Temperature | -20℃ ~ 40℃ |
| Operating Altitude | <1000m | Protection Rating | IP55 |
| Rated Torque | 578Nm | Rated Current | 165/95 |
| Mounting Method | IM B5 | Motor Shaft Height | FS280M |
| Rated Speed | 1488rpm | Synchronous Speed | 1500rpm |
| Motor Poles | 4 pole | Rated Power | 90KW |
| Power Supply Phases | 3AC | Rated Frequency | 50Hz |
| Rated Voltage | 220VD/380VY | Product Type | SIMOTICS SD Low Voltage Motor |
| Lifecycle | Delivery Release (PM300) | Country of Origin | China |
| ECCN | N | AL | N |
| Model Number | 1LE0004-2DB23-3FA4 |
Specifications may be subject to change without notice
