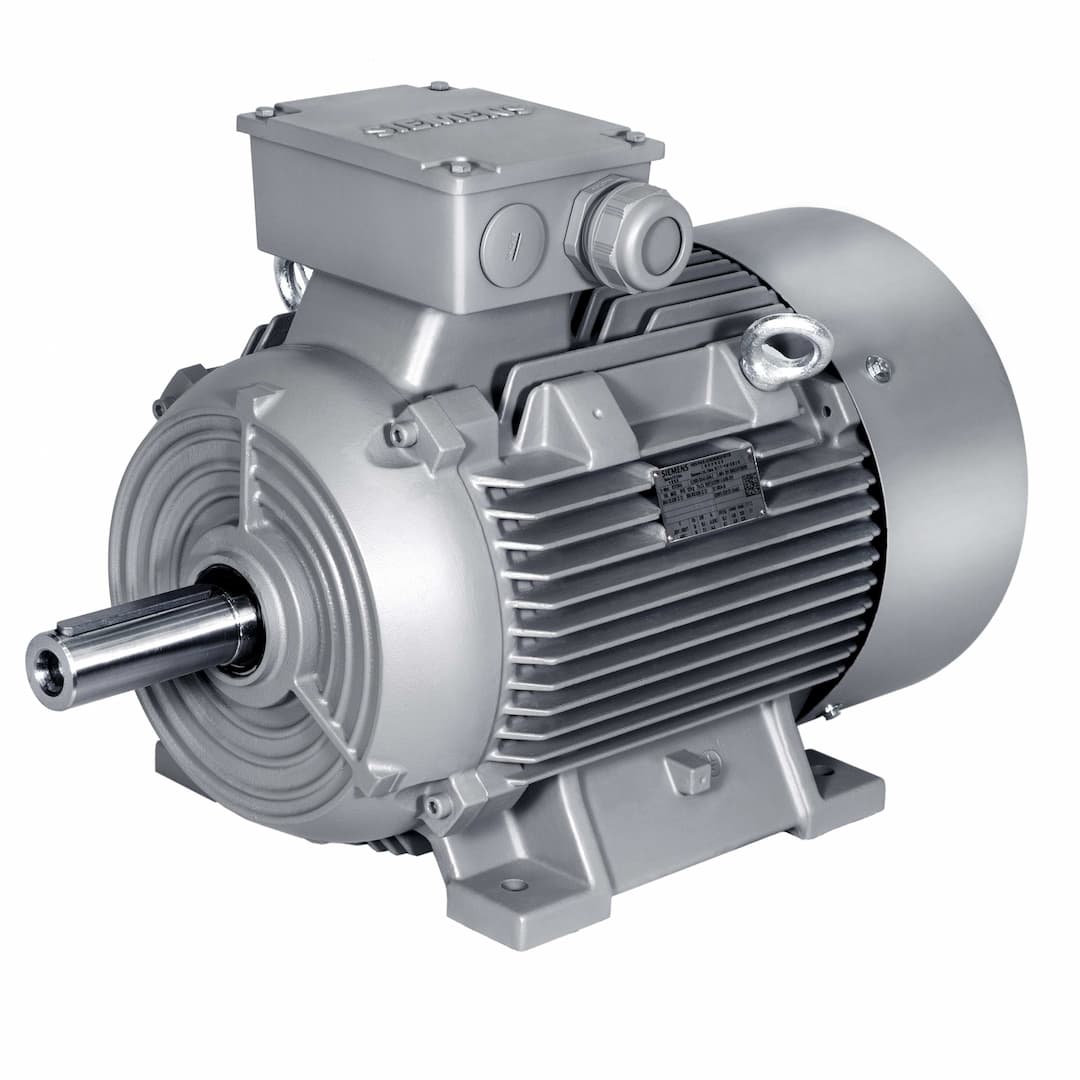

Product Model
1LE0004-2BB23-3FA4
Key Features
- 1High efficiency with IE2 rating, ensuring optimal performance.
- 2Self-ventilated design with IP55 protection for harsh environments.
- 3Cast iron housing for durability and long service life.
- 4Suitable for 45KW (50Hz) and 51KW (60Hz) applications.
- 5Top-mounted terminal box for easy installation and maintenance.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Unit Weight | 356kg | Operating Ambient Temperature | -20℃ ~ 40℃ |
| Operating Altitude | <1000m | Protection Rating | IP55 |
| Rated Torque | 289Nm | Rated Current | 86/49.5 |
| Mounting Method | IM B5 | Motor Shaft Height | FS225M |
| Rated Speed | 1485rpm | Synchronous Speed | 1500rpm |
| Motor Poles | 4 pole | Rated Power | 45KW |
| Power Supply Phases | 3AC | Rated Frequency | 50Hz |
| Rated Voltage | 220VD/380VY | Product Type | SIMOTICS SD Low Voltage Motor |
| Lifecycle | Delivery Release (PM300) | Country of Origin | China |
| ECCN | N | AL | N |
| Model Number | 1LE0004-2BB23-3FA4 |
Specifications may be subject to change without notice
