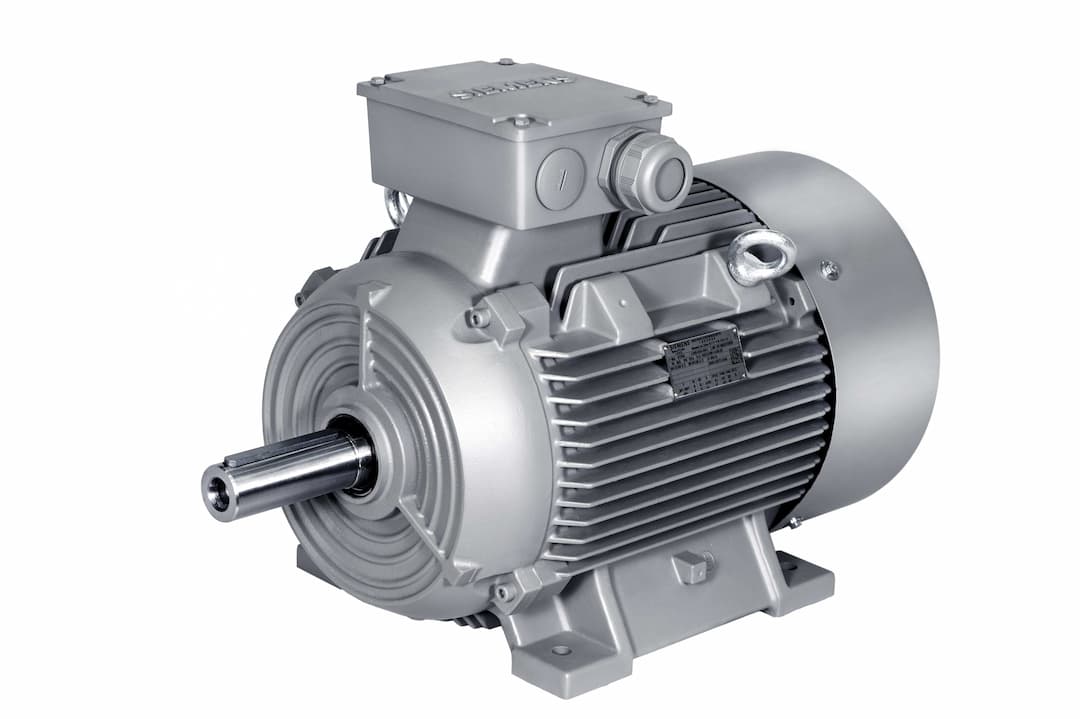

Product Model
1LE0003-1AB42-1AH4
Key Features
- 1Meets IE3 standards for energy efficiency.
- 2Cast aluminum enclosure ensures durability and longevity.
- 3Available in 2 poles, suitable for various industrial applications.
- 4Self-ventilated design maintains optimal performance under different conditions.
- 5IP55 rating provides protection against dust and water ingress.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Unit Weight | 42kg | Operating Ambient Temperature | -20℃ ~ 40℃ |
| Operating Altitude | <1000m | Protection Rating | IP55 |
| Rated Torque | 14.5Nm | Rated Current | 4.7A |
| Mounting Method | IM B3 | Motor Shaft Height | FS100L |
| Rated Speed | 1445rpm | Synchronous Speed | 1500rpm |
| Motor Poles | 4 pole | Rated Power | 2.2KW |
| Number of Phases | 3AC | Rated Frequency | 50Hz |
| Rated Voltage | 220VD/380VY | Product Type | SIMOTICS SD Low Voltage Motor |
| Lifecycle | Delivery Release (PM300) | Country of Origin | China |
| ECCN | N | AL | N |
| Model Number | 1LE0003-1AB42-1AH4 |
Specifications may be subject to change without notice
