Product Model

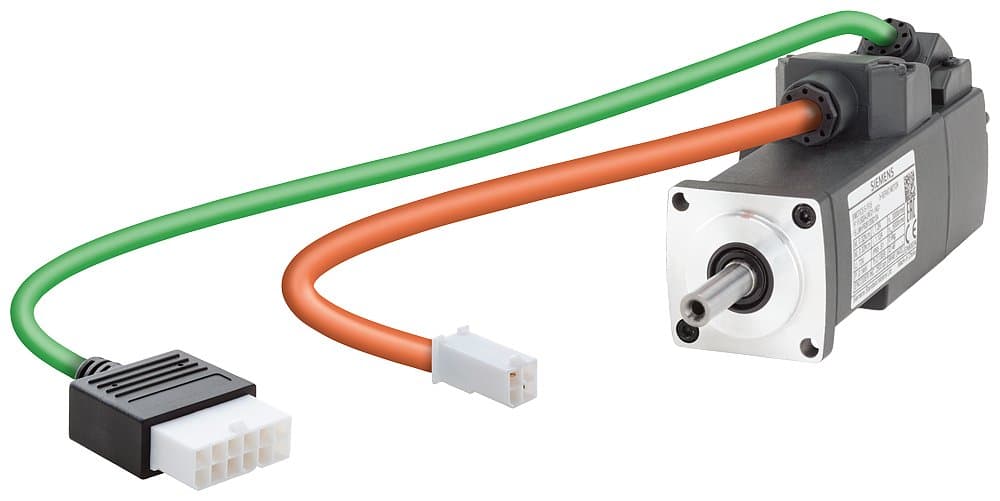

1FL6024-2AF21-1AG1
Key Features
- 1High-performance motor designed for industrial applications.
- 2Operating voltage of 230V 3AC ensures reliable operation.
- 30.1 kW power output suitable for various machinery needs.
- 4Rotational speed of 3000 rpm for efficient operation.
- 5Compact design with a shaft height of 20 mm and incremental encoder TTL 2500.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Arrangement of Electrical Connection | Cable Outlet | Certification | CE, EAC |
| Motor Specifications | Permanent Magnet Synchronous Motor | Cooling Method | Self-cooled |
| Relative Humidity / During Operation / Maximum Value / Remarks | Maximum RH (no condensation at 30 °C) | Relative Humidity / During Operation / Maximum Value | 90% |
| Environmental Temperature / During Operation / Maximum Value | 40 °C | Environmental Temperature / During Operation / Minimum Value | 0 °C |
| Vibration Level Rating | Level A | Net Weight / Motor | 0.60 kg |
| Structure Form of Rotating Electrical Machine / Code Conformity I | IM B5 (IM V1, IM V3) | Protection Class IP | IP65 |
| Thermal Class | B (130 °C) | Torque Constant / Winding Overheating 85K | 0.29 N.m/A |
| Consumption Current / Maximum Value | 3.60 A | Consumption Current / Winding Overheating 85K / Rating | 1.20 A |
| Output Mechanical Power [hp] | 0.14 hp | Output Mechanical Power / Winding Overheating 85K / Rating | 0.10 kW |
| Shaft Height / Rated Value / Remarks | 20 | Torque / Maximum Value | 0.96 N.m |
| Shaft End Model / Drive Side | Smooth Shaft | Speed / Rating | 3000 1/min |
| Parking Brake | No | Motor Type | Low Inertia |
| Product Type | S-1FL6 Servo Motor | Lifecycle | Delivery Release (PM300) |
| Country of Origin | China | ECCN | N |
| AL | N | Model Number | 1FL6024-2AF21-1AG1 |
Specifications may be subject to change without notice
