Product Model

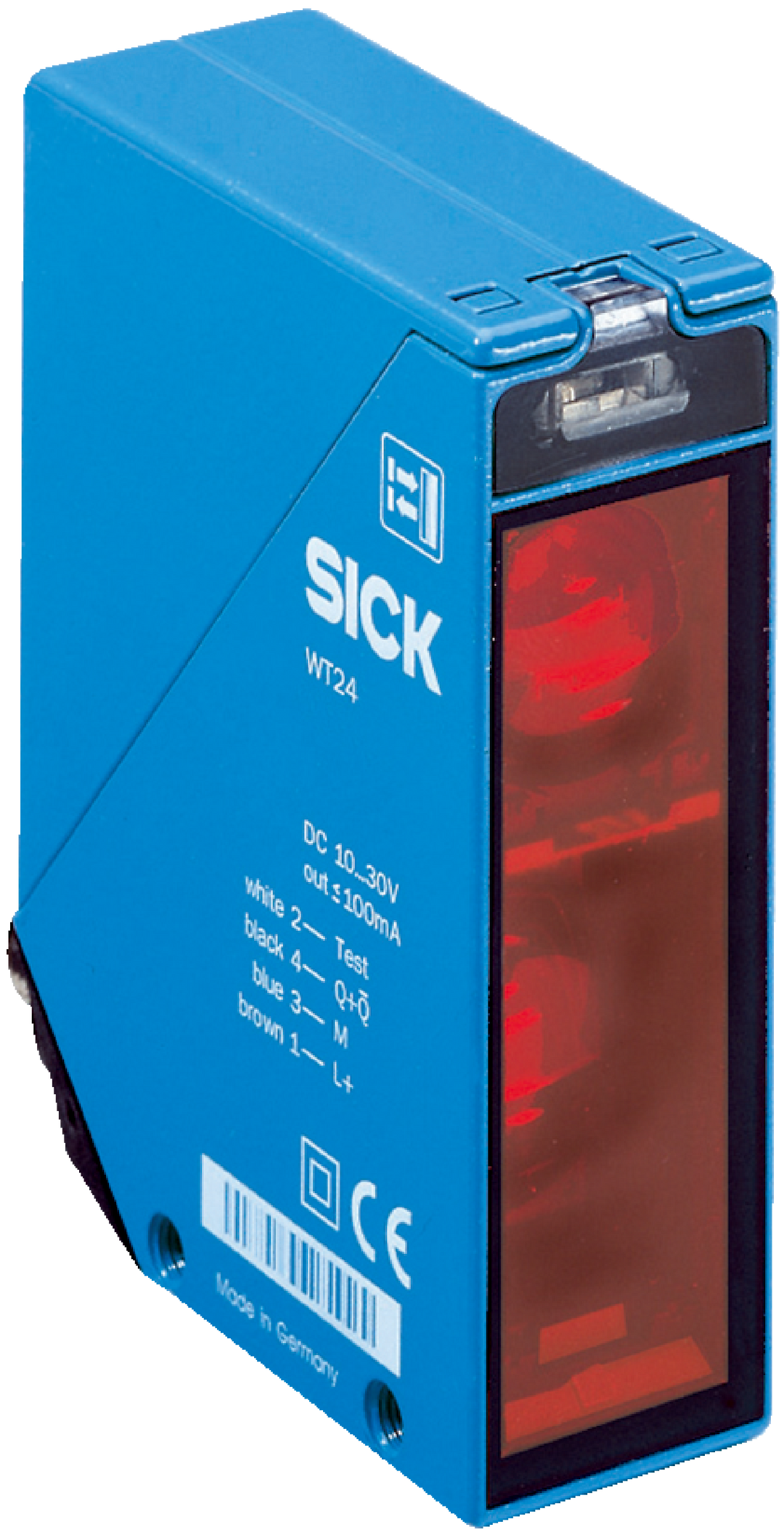

WT24-2V510
Key Features
- 1Precise Background Suppression: Detect objects with high accuracy even in complex backgrounds.
- 2Long Sensing Range: Operates effectively from 100 mm to 2500 mm, ensuring reliable detection.
- 3Infrared Light Source: Utilizes LED infrared light for robust and reliable operation.
- 4Adjustable Sensing Distance: Easily adjust the sensing distance using a potentiometer.
- 5Durable Design: Features a metal housing with IP69K rating, ensuring long service life and resistance to harsh environments.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Functional principle | Photoelectric proximity sensor | Functional principle detail | Background suppression |
| Dimensions (W x H x D) | 27 mm x 87.5 mm x 65 mm | Housing design (light emission) | Rectangular |
| Sensing range max. | 100 mm ... 2,500 mm | Sensing range | 100 mm ... 2,500 mm |
| Type of light | Infrared light | Light source | LED |
| Light spot size (distance) | Ø 80 mm (2,500 mm) | Adjustment | Potentiometer |
| Alarm output | ✔ | Supply voltage UB | 10 V DC ... 30 V DC |
| Ripple | < 5 V | Current consumption | 50 mA |
| Switching output | NPN, PNP | Switching mode | Light/dark switching |
| Switching mode selector | Selectable via PNP/NPN selector, selectable via light/dark selector | Output current Imax. | ≤ 100 mA |
| Response time | ≤ 500 µs | Switching frequency | 1,000 Hz |
| Connection type | Male connector M12, 5-pin | Circuit protection | A6)#!#C7)#!#D8) |
| Protection class | II | Weight | 330 g |
| Housing material | Metal, zinc diecast | Optics material | Plastic, PMMA |
| Enclosure rating | IP69K | Test input sender off | TE to 0 V |
| Ambient operating temperature | –40 °C ... +60 °C | Ambient temperature, storage | –40 °C ... +75 °C |
Specifications may be subject to change without notice
