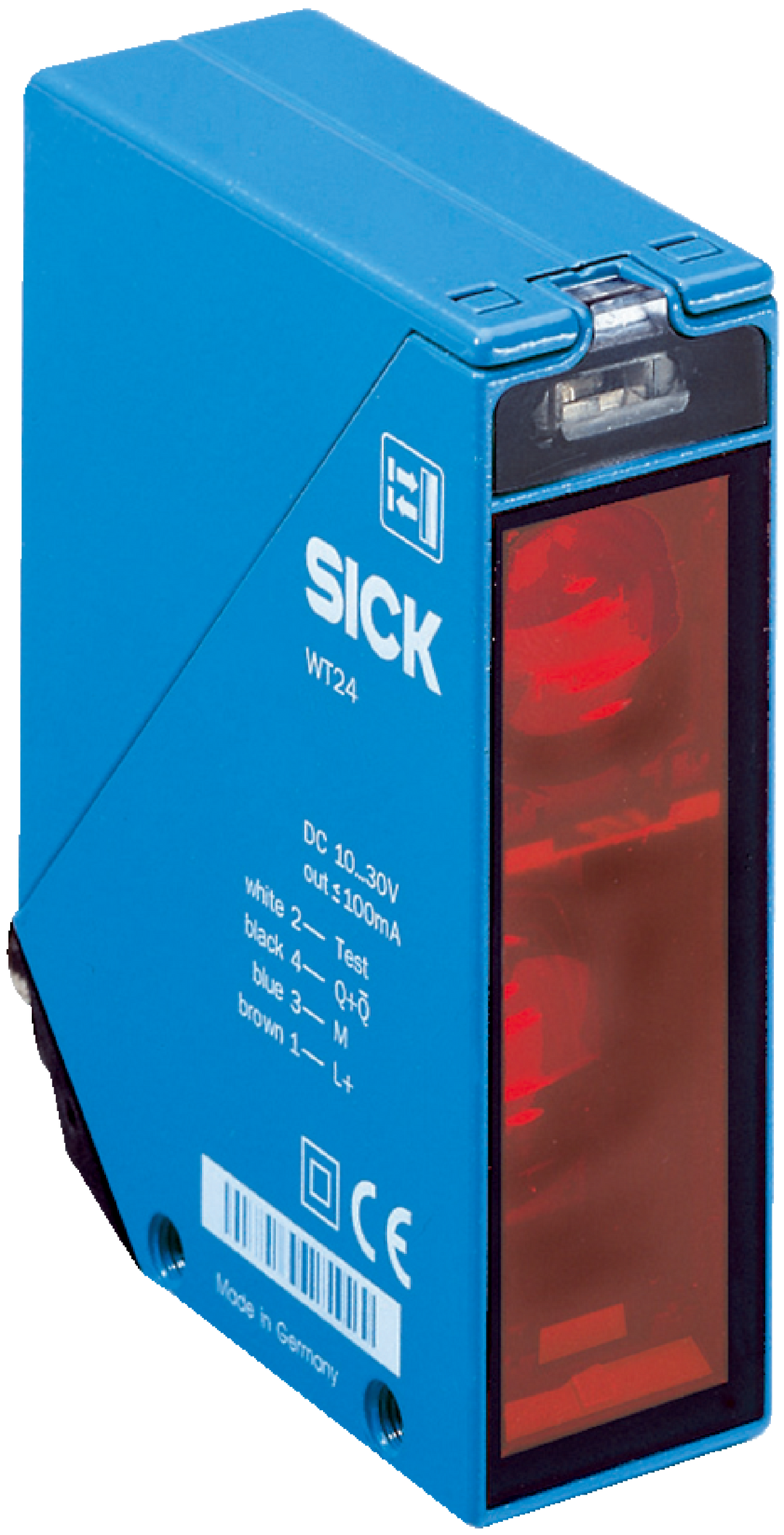

Product Model
WT24-2R519
Key Features
- 1Precise background suppression at ranges up to 2500 mm.
- 2Immune to ambient light and crosstalk from another photoelectric sensor.
- 3Switch selectable PNP or NPN output for versatile integration.
- 4Compact design with a rectangular housing and IP 69K rating for reliability.
- 5Adjustable operating distance via potentiometer for customizable detection.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Functional principle | Photoelectric proximity sensor | Functional principle detail | Background suppression |
| Dimensions (W x H x D) | 27 mm x 87.5 mm x 65 mm | Housing design (light emission) | Rectangular |
| Sensing range max. | 100 mm ... 2,500 mm | Sensing range | 100 mm ... 2,500 mm |
| Type of light | Infrared light | Light source | LED |
| Light spot size (distance) | Ø 80 mm (2,500 mm) | Adjustment | Potentiometer |
| Supply voltage UB | 20 V AC/DC ... 250 V AC/DC | Power consumption | < 2 VA |
| Switching output | Relay, electrically isolated | Output function | Change-over contacts |
| Switching mode | Light/dark switching | Switching mode selector | Selectable via light/dark selector |
| Switching current (switching voltage) | 2,5 A @ 250 V AC, 2,5 A @ 24 V DC, 0,125 A @ 250 V DC | Response time | ≤ 10 ms |
| Switching frequency | 10 Hz | Connection type | Micro connector, 5-pin |
| Circuit protection | A3)#!#C4) | Protection class | II |
| Weight | 330 g | Housing material | Metal, zinc diecast |
| Optics material | Plastic, PMMA | Enclosure rating | IP67 |
| Ambient operating temperature | –40 °C ... +60 °C | Ambient temperature, storage | –40 °C ... +75 °C |
Specifications may be subject to change without notice
