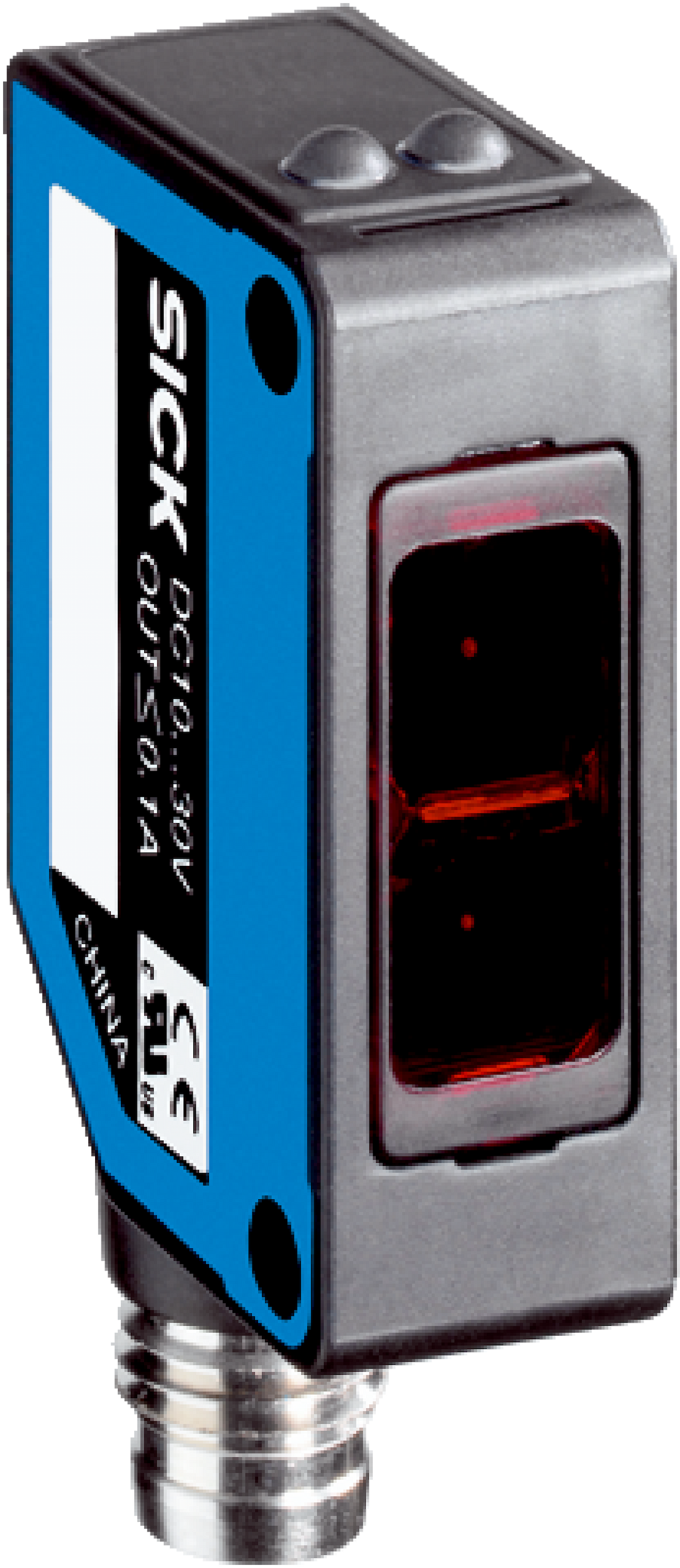

Product Model
WT100-2P0230S11
Key Features
- 1Advanced proximity detection with high accuracy.
- 2Robust design for harsh industrial environments.
- 3Easy integration with various industrial systems.
- 4Reliable operation with minimal maintenance required.
- 5Compatible with a wide range of industrial automation systems.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Functional principle | Photoelectric proximity sensor | Functional principle detail | Energetic |
| Dimensions (W x H x D) | 11 mm x 31 mm x 20 mm | Housing design (light emission) | Rectangular |
| Sensing range max. | 20 mm ... 250 mm | Sensing range | 20 mm ... 210 mm |
| Type of light | Visible red light | Light source | LED |
| Light spot size (distance) | Ø 75 mm (1,000 mm) | Wave length | 632 nm |
| Supply voltage UB | 10 V DC ... 30 V DC | Ripple | ± 10 % |
| Current consumption | 30 mA | Switching output | PNP |
| Signal voltage PNP HIGH/LOW | U#!#- 1,8 V / ca. 0 V | Output current Imax. | ≤ 100 mA |
| Response time | ≤ 0.5 ms | Switching frequency | 1,000 Hz |
| Connection type | Cable with Stocko-connector (MKF-13264), 300 mm | Cable material | Plastic, PUR |
| Conductor cross section | 0.18 mm² | Circuit protection | A7)#!#B8)#!#D9) |
| Protection class | III | Housing material | Plastic, ABS/PC/POM |
| Optics material | Plastic, PMMA | Enclosure rating | IP67 |
| Ambient operating temperature | –30 °C ... +55 °C | Ambient temperature, storage | –40 °C ... +70 °C |
Specifications may be subject to change without notice
