Product Model

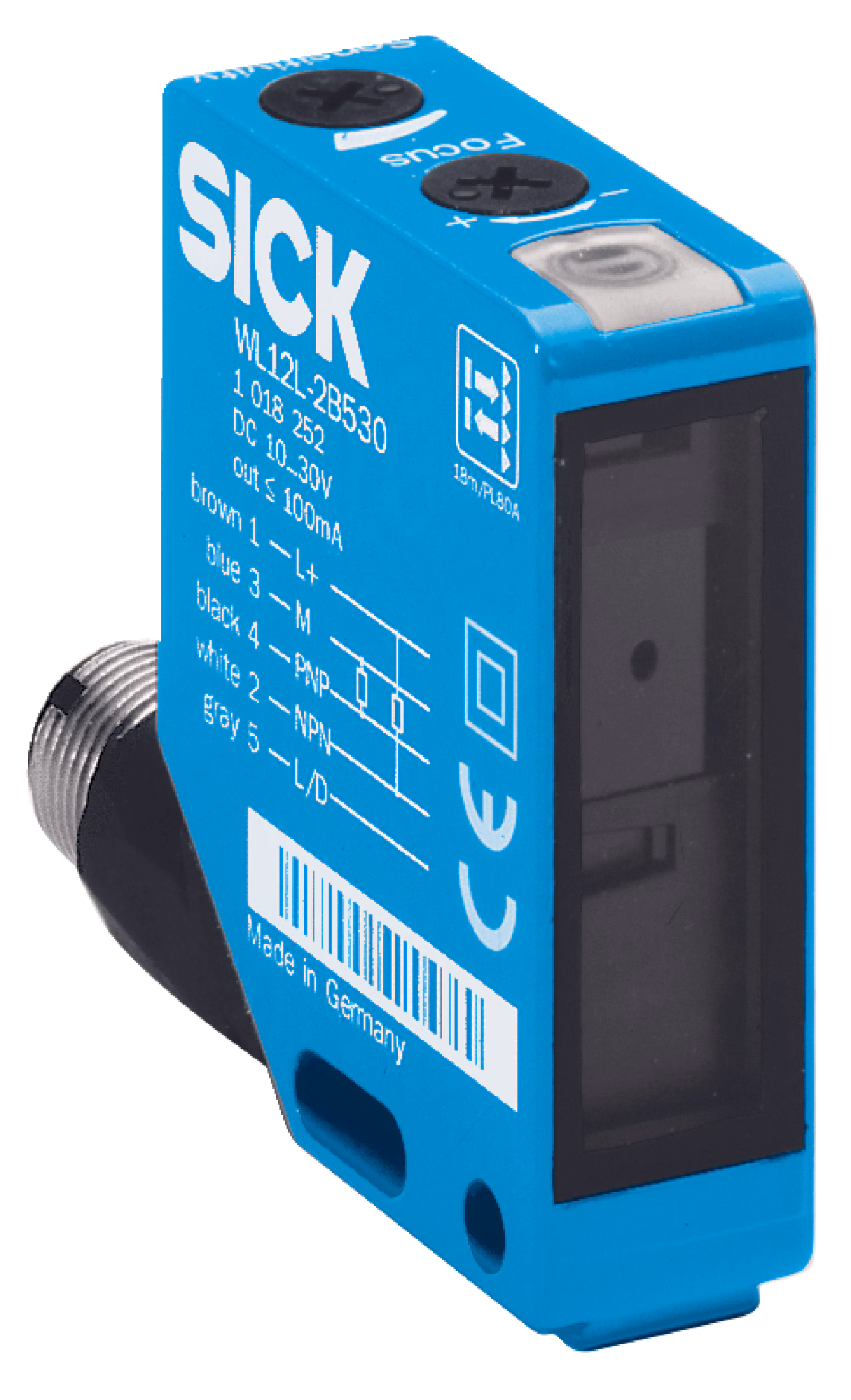

WL12L-2B530S02
Key Features
- 1High Accuracy Detection: Precise detection of small objects with a visible red light laser spot.
- 2Long Service Life: Average service life of 50,000 hours at +25°C.
- 3Rugged Design: Rugged zinc die cast metal housing resistant to shocks and vibrations.
- 4Easy Parameterization: Simple parameterization with Blue Pilot or IO-Link for fast setup.
- 5High Reliability: Reliable detection of challenging objects like transparent or very dark objects.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Functional principle | Photoelectric retro-reflective sensor | Functional principle detail | Without reflector minimum distance (autocollimation/coaxial optics) |
| Sensing range max. | 0 m ... 36 m | Sensing range | 0 m ... 5 m |
| Polarisation filters | Yes | Emitted beam_Light source | Laser3) |
| Emitted beam_Type of light | Visible red light | Emitted beam_Light spot size (distance) | Ø 0.8 mm (300 mm) |
| Key laser figures_Normative reference | EN 60825-1:2014, IEC 60825-1:2007 | Key laser figures_Laser class | 24) |
| Key LED figures_Wave length | 650 nm | Adjustment | Potentiometer |
| Special applications | Detecting small objects, Detection of objects moving at high speeds | Supply voltage UB | 10 V DC ... 30 V DC |
| Ripple | < 5 V | Current consumption | 55 mA |
| Protection class | III | Digital output_Type | PNP, NPN4)5) |
| Digital output_Switching mode | Light switching, Dark switching4)5) | Digital output_Switching mode selector | Selectable via L/D control cable |
| Digital output_Signal voltage PNP HIGH/LOW | Uv - < 2.9 V, Uv V / 0 V <= 1.5 V | Digital output_Signal voltage NPN HIGH/LOW | Uv - < 2.9 V, Uv V / 0 V <= 1.5 V |
| Digital output_Output current Imax. | ≤ 100 mA | Digital output_Response time | ≤ 200 µs6) |
| Digital output_Switching frequency | 2,500 Hz7) | Circuit protection | A8)#!#C9)#!#D10) |
| Housing | Rectangular | Dimensions (W x H x D) | 15 mm x 49 mm x 41.5 mm |
| Connection | Male connector M12, 5-pin | Material_Housing | Metal |
| Material_Front screen | Plastic, PMMA | Weight | 130 g |
