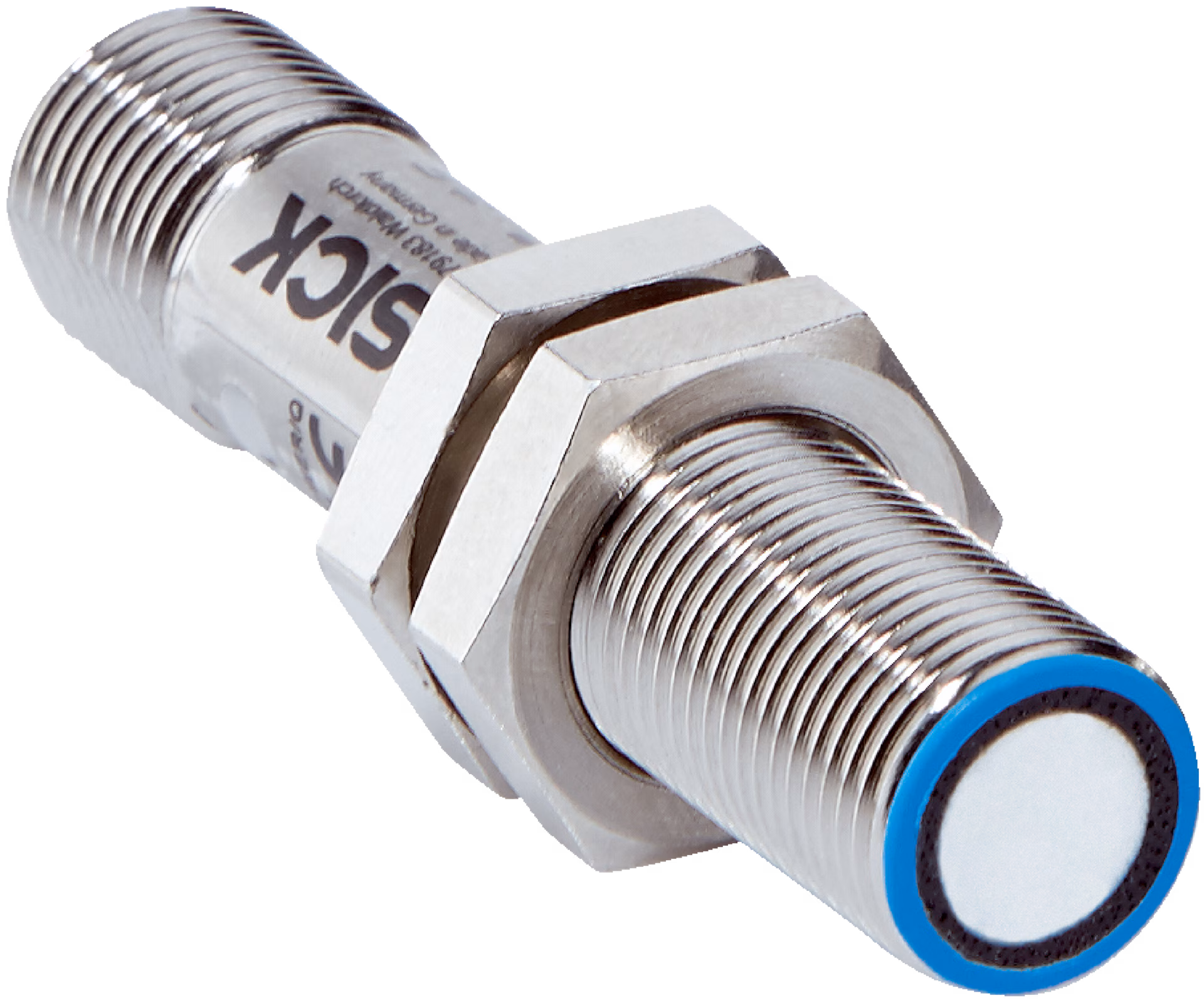

Product Model
UM12-1172271
Key Features
- 1±1% measurement accuracy ensures precise distance detection.
- 2Cylindrical housing with IP65/IP67 rating for durability and protection.
- 324 ms response time for quick and reliable measurements.
- 4Ensures consistent performance across a wide temperature range (-25°C to +70°C).
- 5Analog output with teach-in and invertible functions for flexible integration.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Operating range, limiting range | 20 mm ... 150 mm, 250 mm | Target | Natural objects |
| Resolution | ≥ 0.069 mm | Repeatability | ± 0.15 % |
| Measurement accuracy | ± 1 % | Temperature compensation | ✔ |
| Response time | 24 ms | Output time | 8 ms |
| Ultrasonic frequency (typical) | 380 kHz | Additional function | Teach-in of analog output, Invertable analog output, reset to factory default |
| Safety-related parameters_MTTFD | 101 years | Safety-related parameters_DCavg | 0% |
| Analog output_Number | 1 | Analog output_Type | Voltage output |
| Analog output_Voltage | 0 V ... 10 V, ≥ 100,000 Ω | Analog output_Resolution | 12 bit |
| Supply voltage UB | DC 15 V ... 30 V | Power consumption | ≤ 0.9 W |
| Initialization time | < 300 ms | Indication | 2 x LED |
| Enclosure rating | IP65 / IP67 | Protection class | III |
| Dimensions (W x H x D) | 12 mm x 12 mm x 60.1 mm | Design | Cylindrical |
| Sending axis | Straight | Housing material | Metal (nickel-plated brass, PBT, ultrasonic transducer: polyurethane foam, glass epoxy resin) |
| Weight | 15 g | Thread size | M12 x 1 |
| Connection type | Male connector, M12, 4-pin |
Specifications may be subject to change without notice
