Product Model

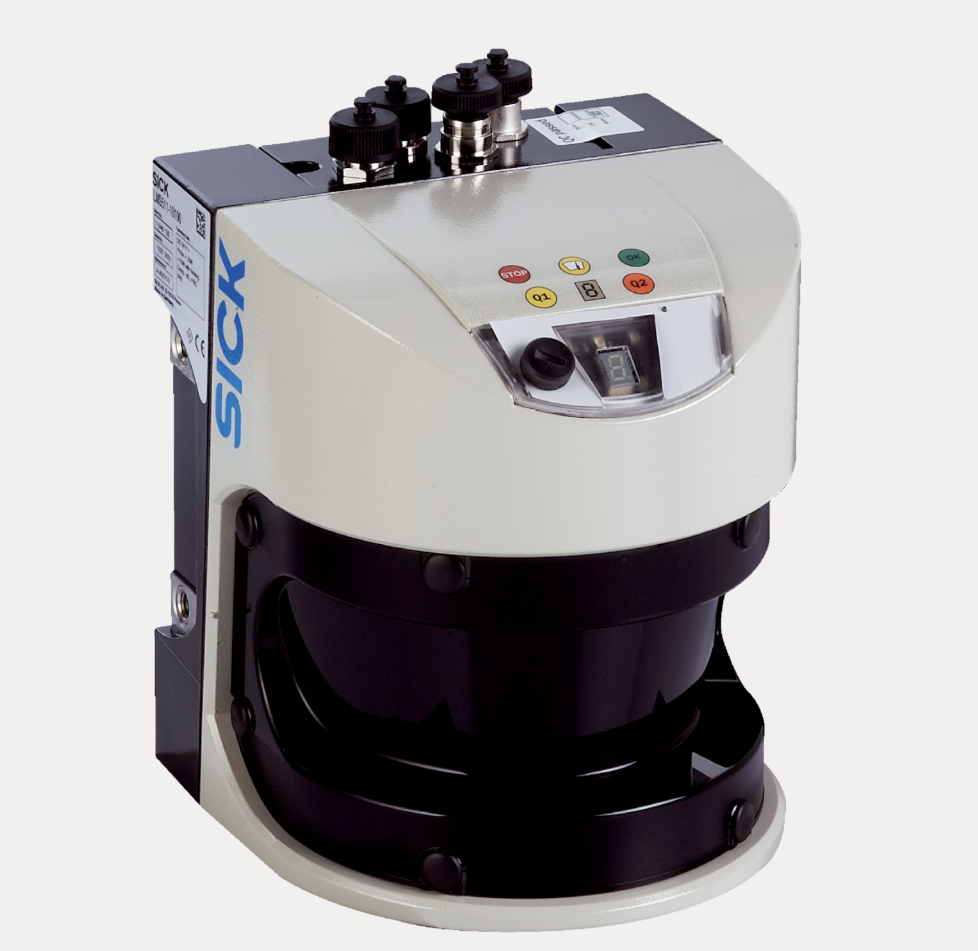

LMS511-11100 Lite
Key Features
- 10.2 m to 80 m working range
- 2Ip65, ip67 enclosure rating
- 3Field evaluation, output of measurement data integrated application
- 44 x m12 round connector connection type
- 525 hz, 35 hz, 50 hz, 75 hz scanning frequency
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Application | Outdoor, Indoor | Variant | Lite |
| Resolution power | Standard Resolution | Light source | Infrared (905 nm, ± 10 nm) |
| Laser class | 1 (EN/IEC 60825-1:2014, EN 60825-1:2014+A11:2021) | Aperture angle Horizontal | 190° |
| Scanning frequency | 25 Hz
35 Hz
50 Hz
75 Hz | Angular resolution Horizontal | 0.25°
0.5°
1° |
| Scan field flatness | Scan field flatness combined: ± 0.72°
Typical conical error: 1 sigma value - 0.11° ± 0.1°
Typical tilt: 1 sigma value + 0.15° ± 0.08° | Heating | Self-heating with additional integrated heating |
| Working range | 0.2 m ... 80 m | Scanning range At 10% remission factor | 40 m |
| Measurement accuracy | ± 24 mm | Spot size | Divergence: 11.9 mrad
At the viewing window: 13.5 mm
In 26 m: 322 mm
In 40 m: 489 mm |
| Amount of evaluated echoes | 2 | Connection type | 4 x M12 round connector |
| Supply voltage | 24 V DC, ± 20 % | Power consumption | 22 W, + 55 W heating (typical) |
| Housing material | AlSi12 | Housing color | Gray (RAL 7032) |
| Window material | Polycarbonate, scratch-resistant coating | Enclosure rating | IP65 (EN 60529, Section 14.2.7)
IP67 (EN 60529, Section 14.2.7) |
| Protection class | III (IEC 61140:2016-11) | Weight | 3.7 kg |
| Dimensions (L x W x H) | 160 mm x 155 mm x 185 mm | MTBF | > 100 years |
| MTTFD | > 100 years | Response time | ≥ 13 ms |
| Detectable object shape | Almost any | Systematic error | ± 25 mm (1 m ... 10 m)
± 35 mm (10 m ... 20 m)
± 50 mm (20 m ... 30 m) |
| Statistical error | 6 mm (1 m ... 10 m)
8 mm (10 m ... 20 m)
14 mm (20 m ... 30 m) | Integrated application | Field evaluation
Output of measurement data |
| Number of field sets | 4 fields | Simultaneous evaluation cases | 4 |
| Filter | Echo filter
Fog filter
Particle filter
Average filter
Glare filter | Ethernet Function | TCP/IP, UDP/IP
OPC DA
Host and AUX, NTP |
| Ethernet Data transmission rate | 10/100 MBit/s | Serial Function | RS-232, RS-422
Host and AUX |
| Serial Data transmission rate | 9.6 kBaud ... 500 kBaud | USB Function | Mini-USB
Service interface |
| Digital inputs/outputs Inputs | 2 (digital) | Digital inputs/outputs Outputs | 3 (digital) |
| Optical indicators | 5 LEDs (Additional 7-segment display) |
Specifications may be subject to change without notice
