Product Model

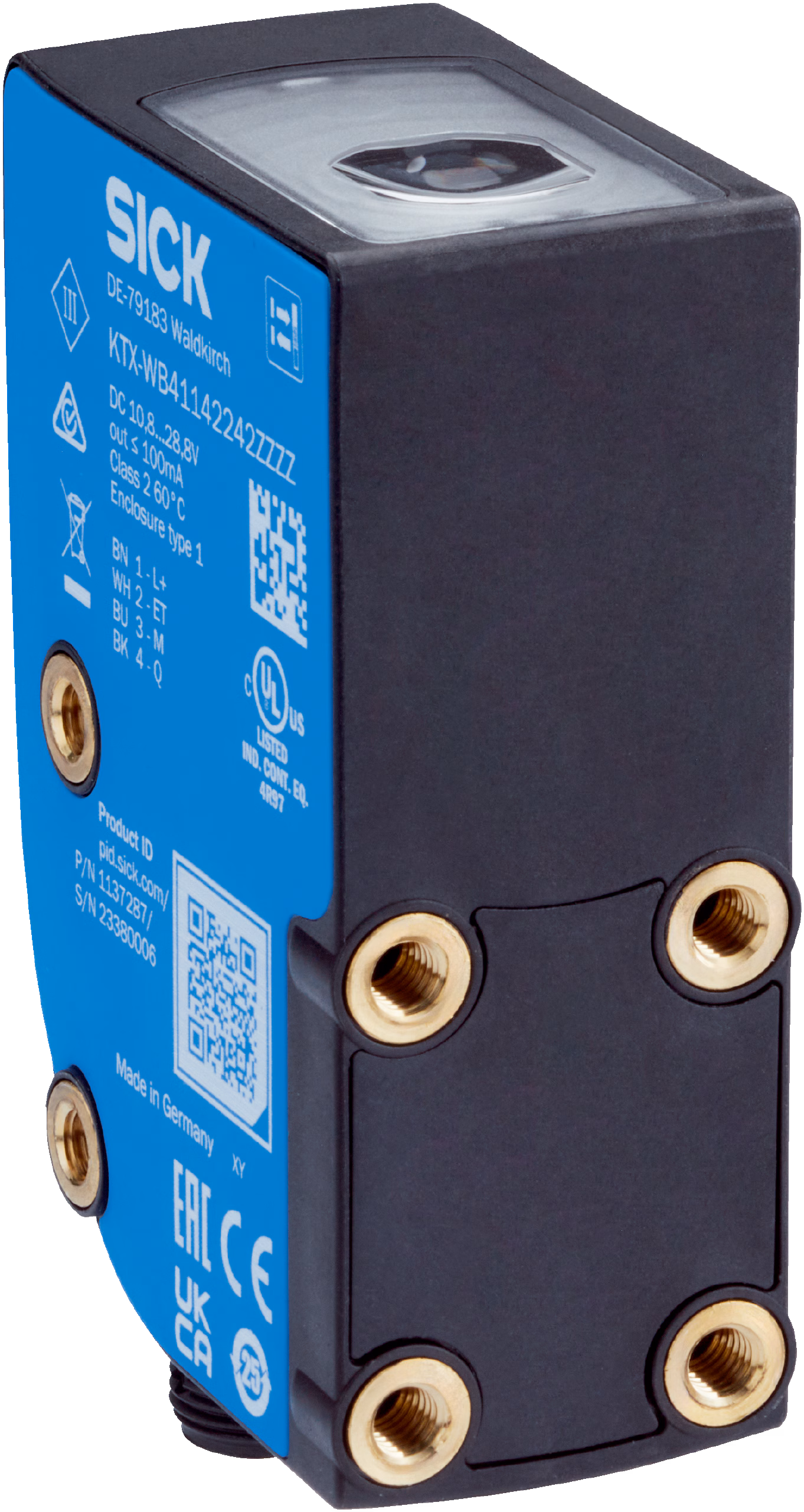

KTX-WB41142242ZZZZ
Key Features
- 1High precision contrast detection with TwinEye-Technology.
- 2Durable special construction housing with IP67 protection.
- 3Vertical light spot with 0.9 mm x 3.8 mm size for precise sensing.
- 4Compatible with M12 4-pin connector for easy integration.
- 5Suitable for a wide range of industrial applications with 25 kHz switching frequency.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Special applications | Standard | Device type | Easy Teach |
| Dimensions (W x H x D) | 30 mm x 53 mm x 78.5 mm | Sensing distance | ≤ 13 mm |
| Sensing distance tolerance | ± 3 mm | Housing design | Large |
| Light source | LED, RGB | Wave length | 470 nm, 525 nm, 625 nm |
| Light emission | Short device side | Light spot size | 0.9 mm x 3.8 mm |
| Light spot direction | Vertical | Receiving filters | None |
| Teach-in mode | 2-point teach-in | Output function | Light/dark switching |
| Delay time | Adjustable | Delivery status | 2-point teach-in |
| Parameter presettings | None | Setting the key lock | Standard |
| Supply voltage | 10.8 V DC ... 28.8 V DC | Ripple | ≤ 5 V |
| Current consumption | < 100 mA | Switching frequency | 25 kHz |
| Response time | 20 µs | Jitter | 10 µs |
| Switching output | Push-pull: PNP/NPN | Switching output (voltage) | Push-pull: PNP/NPN HIGH = U#!#- 3 V/LOW ≤ 3 V |
| Output current Imax. | 100 mA | Retention time (ET) | 35 ms, non-volatile memory |
| Connection type | Male connector M12, 4-pin | Protection class | III |
| Circuit protection | UVconnections, reverse polarity protected#!#Output Q short-circuit protected#!#Interference pulse suppression | Enclosure rating | IP67 |
| Weight | 94 g | Housing material | VISTAL® |
| Optics material | COP |
Specifications may be subject to change without notice
