Product Model

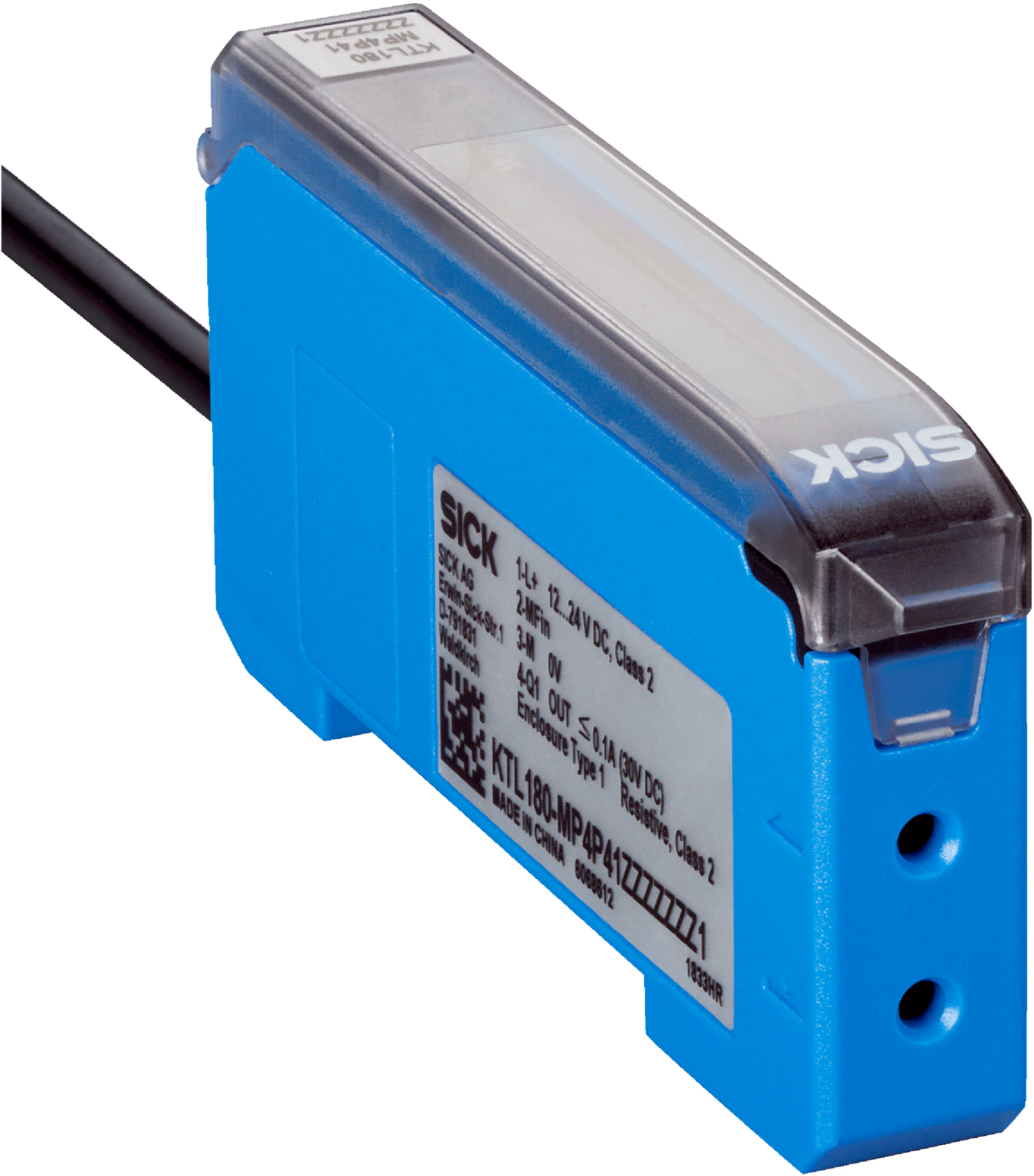

KTL180-MN4P51ZZZZZ
Key Features
- 1The KTL180-MN4P51ZZZZZ ensures accurate detection even at high speeds with its 31.2 kHz switching frequency.
- 2Features a high gray-scale resolution for precise identification of contrasts, enhancing overall performance.
- 3Built with robust components to withstand harsh industrial environments, ensuring long-lasting reliability.
- 4Designed for seamless integration into various automation systems, reducing setup complexity.
- 5Offers reliable and consistent performance, minimizing errors in detection processes.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Special applications | - | Device type | Stand-alone |
| Indication | Display | Display | LED status display / 2x 4-character digital dual displays, Set value (green indicator) and actual value (red indicator) are displayed simultaneously, display of parameters |
| Dimensions (W x H x D) | 10.5 mm x 33.2 mm x 71.9 mm | Sensing range | 0 mm ... 30 mm, Proximity system |
| Sensing distance | ≤ 30 mm | Housing design | For fiber-optic |
| Light source | LED, white | Angle of dispersion | Approx. 65° |
| Wave length | 400 nm ... 750 nm | Teach-in mode | 1-point teach-in, 2-point teach-in, teach-in dynamic |
| Delay time | Adjustable | Special features | Multi-function input, stand-alone mode |
| Delivery status | Teach-in dynamic | Parameter presettings | None |
| Supply voltage | 12 V DC ... 24 V DC | Ripple | ≤ 10 % |
| Current consumption | ≥ 50 mA (at 24 V) | Switching frequency | 31.2 kHz |
| Response time | 16 µs | Jitter | 8 µs |
| Number of switching outputs | 2 | Switching output | NPN |
| Switching mode | Light/dark switching | Output current Imax. | 100 mA |
| Input, blanking input (AT) | Blanked: U < 1 V: free-running: U = 1.5 V ... < Uv | Input, light/dark (L/D) | Light: U = 1.5 V: light: U < 1 V |
| Retention time (ET) | 25 ms, non-volatile memory | Connection type | Cable with plug M12, 5-pin, 300 mm |
| Protection class | III | Circuit protection | UVconnections, reverse polarity protected#!#In-/outputs short-circuit protected#!#Interference pulse suppression#!#Outputs overcurrent and short-circuit protected |
| Enclosure rating | IP50 | Weight | 71 g |
| Housing material | Plastic, VISTAL® |
Specifications may be subject to change without notice
