Product Model

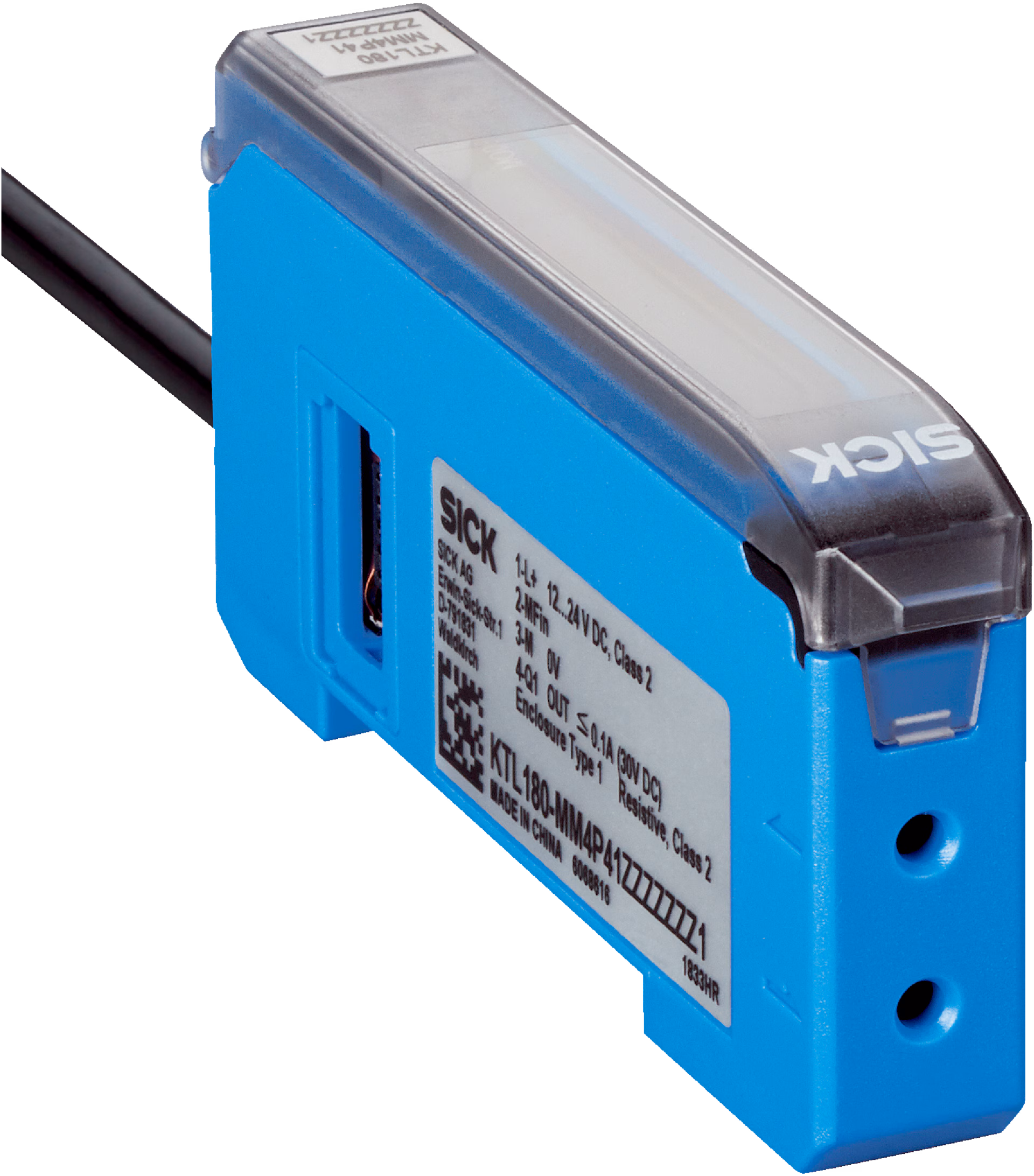

KTL180-MM4P51ZZZZZ
Key Features
- 1Reliable detection of contrast differences at high speeds.
- 2High-resolution grayscale sensor for precise measurements.
- 331.2 kHz connection frequency for fast data transfer.
- 4Compact design for easy integration into various systems.
- 5Durable construction for long-lasting performance in harsh environments.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Special applications | - | Device type | Base unit |
| Indication | Display | Display | LED status display / 2x 4-character digital dual displays, Set value (green indicator) and actual value (red indicator) are displayed simultaneously, display of parameters |
| Dimensions (W x H x D) | 10.5 mm x 33.2 mm x 71.9 mm | Sensing range | 0 mm ... 30 mm, Proximity system |
| Sensing distance | ≤ 30 mm | Housing design | For fiber-optic |
| Light source | LED, white | Angle of dispersion | Approx. 65° |
| Wave length | 400 nm ... 750 nm | Teach-in mode | 1-point teach-in, 2-point teach-in, teach-in dynamic |
| Delay time | Adjustable | Special features | Multi-function input, base unit for BUS mode |
| Delivery status | Teach-in dynamic | Parameter presettings | None |
| Supply voltage | 12 V DC ... 24 V DC | Ripple | ≤ 10 % |
| Current consumption | ≥ 50 mA (at 24 V) | Switching frequency | 31.2 kHz |
| Response time | 16 µs | Jitter | 8 µs |
| Number of switching outputs | 2 | Switching output | PNP |
| Switching mode | Light/dark switching | Output current Imax. | 100 mA |
| Input, blanking input (AT) | Blanked: U = 6.5 V ...< Uv: free-running: U < 5.5 V | Input, light/dark (L/D) | Light: U < 6.5 V: dark: U = 5.5 V ... < UV |
| Retention time (ET) | 25 ms, non-volatile memory | Connection type | Cable with plug M12, 5-pin, 300 mm |
| Protection class | III | Circuit protection | UVconnections, reverse polarity protected#!#In-/outputs short-circuit protected#!#Interference pulse suppression#!#Outputs overcurrent and short-circuit protected |
| Enclosure rating | IP50 | Weight | 71 g |
| Housing material | Plastic, VISTAL® |
Specifications may be subject to change without notice
